ADP5303 Series

Catalog

50 MA/500 MA, ULTRALOW POWER STEP-DOWN REGULATOR WITH BATTERY VOLTAGE MONITOR

Part	Voltage - Output (Min/Fixed)	Output Configuration	Output Type	Topology	Mounting Type	Frequency - Switching	Operating Temperature (Max)	Operating Temperature (Min)	Function	Voltage - Output (Max)	Voltage - Input (Min)	Package Name	Package Length	Package Width	Voltage - Input (Max)	Package / Case	Synchronous Rectifier	Number of Outputs	Current - Output (Max)	Current - Output (Min)	Current - Output	Main Purpose	Regulator Topology	Total Output Count	Non-Isolated Output Count	Voltage - Output (Min)	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated ADP5303ACBZ-2-R7	0.8 V	Positive	Programmable	Buck	Surface Mount	2 MHz	125 °C	-40 °C	Step-Down	5 V	2.15 V	9-WLCSP	1.87 mm	1.65 mm	6.5 V	9-WFBGA WLCSP	Yes	1	500 mA	50 mA
Analog Devices Inc./Maxim Integrated ADP5303ACBZ-1-R7	0.8 V	Positive	Programmable	Buck	Surface Mount	2 MHz	125 °C	-40 °C	Step-Down	5 V	2.15 V	9-WLCSP	1.87 mm	1.65 mm	6.5 V	9-WFBGA WLCSP	Yes	1	500 mA	50 mA

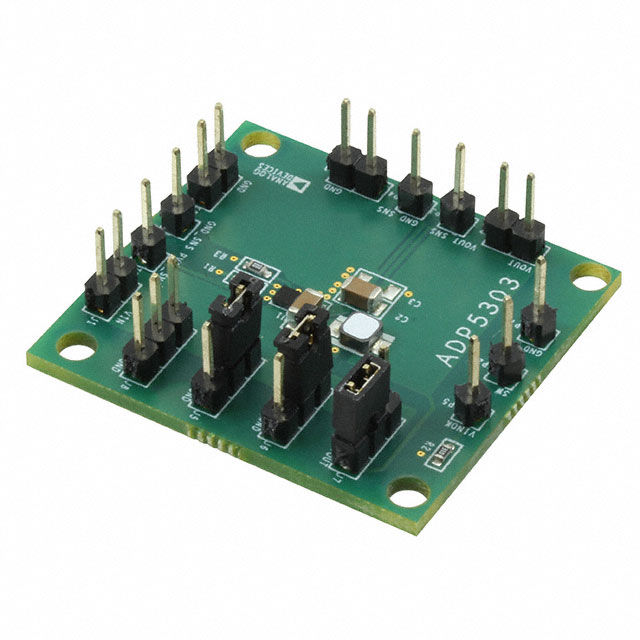

Analog Devices Inc./Maxim Integrated ADP5303-EVALZ			Non-Isolated			2 MHz				5 V											500 mA	DC/DC Step Down	Buck	1	1 count	0.8 V	Board	2.15 V	6.5 V	ADP5303
