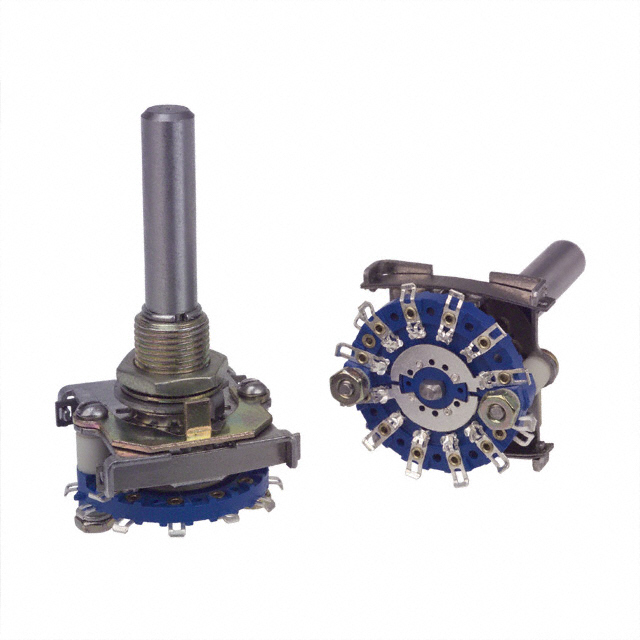

D2D0206 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-6POS 250MA 115V
| Part | Panel Cutout Dimensions [diameter] | Number of Positions [Min] | Number of Positions [Max] | Contact Timing | Contact Finish | Circuit per Deck | Number of Poles per Deck | Actuator Length [x] | Number of Decks [custom] | Angle of Throw | Current Rating (Amps) | Actuator Type | Actuator Type [diameter] | Mounting Type | Termination Style | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Index Stops |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 2 | 6 | Non-Shorting (BBM) | Silver | DP6T | 2 | 1 in | 1 | 30 ° | 250 mA 550 mA | Round | 0.25 in | Panel Mount | Solder Lug | 115 V | 28 V | Brass | Adjustable |
 Electroswitch | 9.78 mm | 2 | 6 | Shorting (MBB) | Silver | DP6T | 2 | 1 in | 1 | 30 ° | 250 mA 550 mA | Round | 0.25 in | Panel Mount | Solder Lug | 115 V | 28 V | Brass | Adjustable |
