HUM-A-900 Series

Catalog

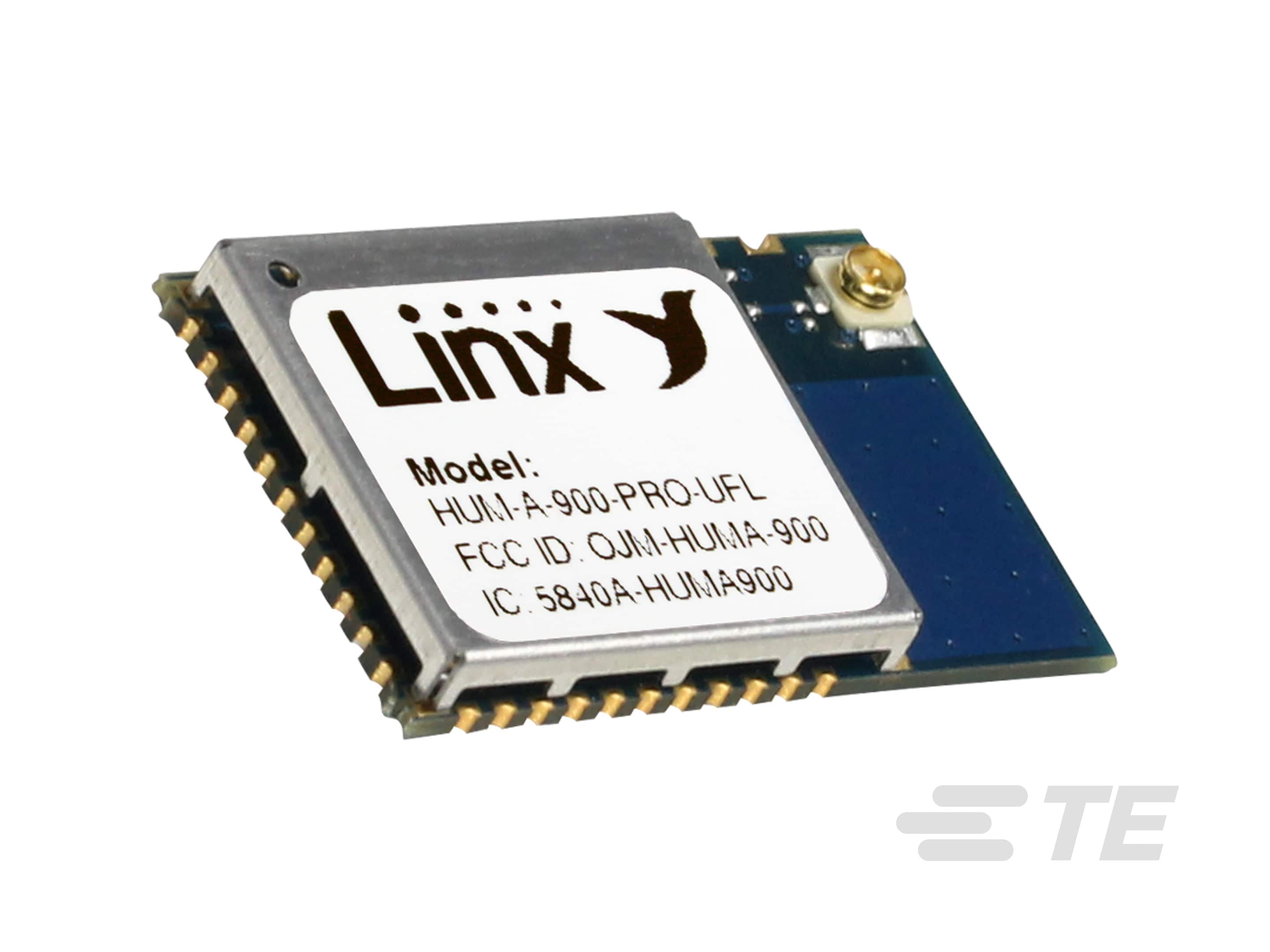

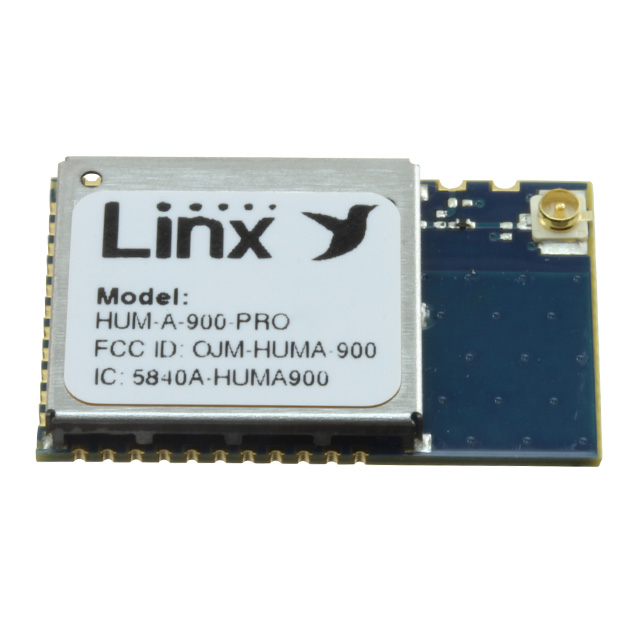

MODULE HUM-PRO-A 900MHZ FHSS FM XCVR FCC

Part	Package / Case	Protocol	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Antenna Type	Sensitivity	Modulation	Current - Receiving	Mounting Type	Serial Interfaces
TE Connectivity AMP Connectors HUM-A-900-PRO-CAS	44-SMD Module	Proprietary	General ISM < 1GHz	3.6 V	2.7 V	153.6 kbps	85 °C	-40 C	902 MHz	928 MHz	380 mA	260 mA	Antenna Not Included Castellation	-108 dBm	FHSS	39 mA	Surface Mount	UART
TE Connectivity AMP Connectors HUM-A-900-PRO-UFL	44-SMD Module	Proprietary	General ISM < 1GHz	3.6 V	2.7 V	115.2 kbps	85 °C	-40 C	902 MHz	928 MHz	380 mA	260 mA	Antenna Not Included U.FL	-108 dBm	FHSS	39 mA	Surface Mount	UART
