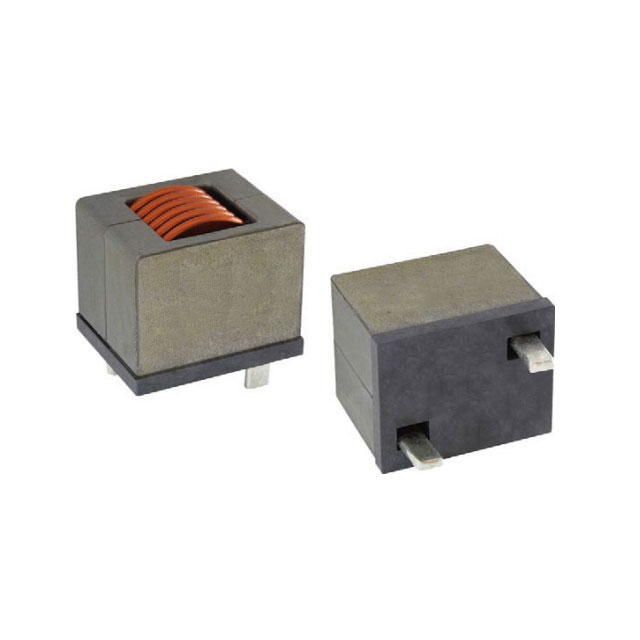

IHDM-1008BC-3A Series
Manufacturer: Vishay Dale
Beta
⌘K
INDUCTOR POWER WIREWOUND 2.2UH 20% 100KHZ POWDERED IRON 70A 0.0004OHM DCR RDL
| Part | Height - Seated (Max) | Shielding | Mounting Type | Tolerance | Package / Case | Size / Dimension Width | Size / Dimension Length | Inductance Frequency - Test | Current Rating | Type | Current - Saturation (Isat) | Inductance | Operating Temperature (Min) | Operating Temperature (Max) | DC Resistance (DCR) (Max) | Material - Core | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 0.896 in | Unshielded | Through Hole | 20 % | Nonstandard | 0.816 in | 1.005 in | 100 kHz | 70 A | Drum Core Wirewound | 110 A | 2.2 µH | -40 °C | 180 °C | 0.4 mOhm | Iron Powder | 45 MHz |
