PRM Series

Catalog

NON-ISOLATED DC/DC CONVERTERS PRM 200W 50VIN 36VOUT

Part	Current - Output (Max) [Max]	Approval Agency	Supplier Device Package	Number of Outputs	Power (Watts)	Features	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Type	Mounting Type	Voltage - Output 1	Applications

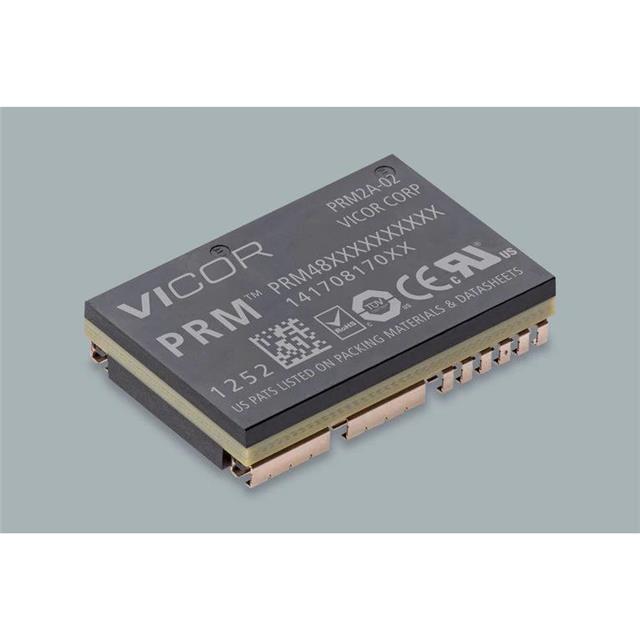

Vicor Corporation MPRM28AF360M120A00	5.56 A	CE	SMD	1	200 Watts	Adjustable Output	Module	14 V	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	95.5 %	26 V	50 V	-55 C	125 °C	50 V	Non-Isolated PoL Module	Surface Mount
Vicor Corporation PRM48BT480T600A00	12.5 A			1	600 W	OCP OTP OVP SCP UVLO	16-DIP Module	38 V	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	97.6 %			-40 C	125 °C	55 V	Pre-Regulator Module	Through Hole	48 V	ITE (Commercial)
Vicor Corporation PRM48DH480T250A03	3.2 A			1	250 W	Remote On/Off UVLO	Module	38 V	0.65 "	6.7 mm	16.5 mm	22 mm	0.87 in	0.26 in	97 %			0 °C	125 °C	60 V	Pre-Regulator Module	Surface Mount	48 V	ITE (Commercial)
