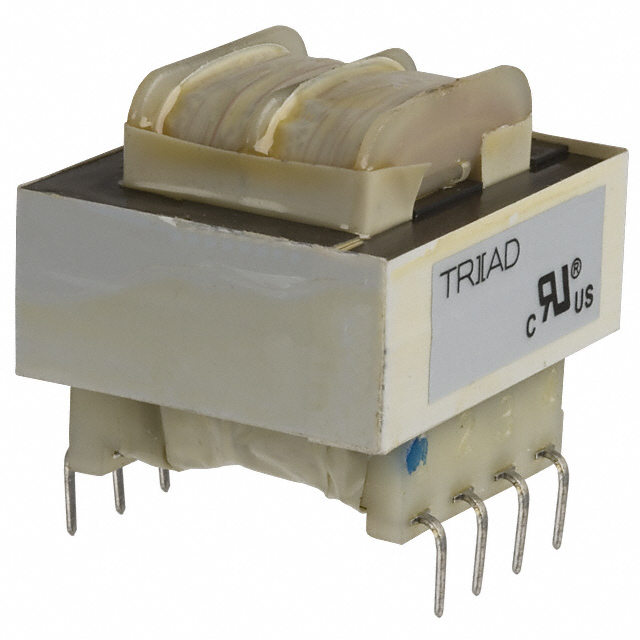

FS Series

Catalog

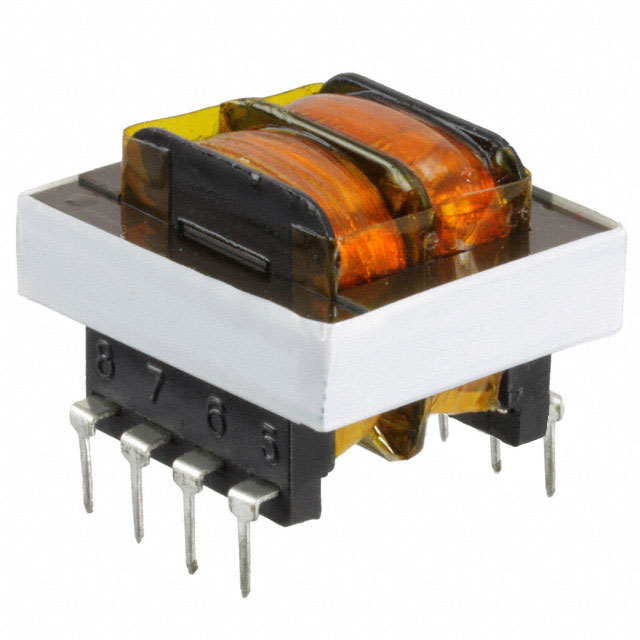

POWER TRANSFORMERS POWER XFMR 12.6 VCT A. 200 MA UL/CUL - CLASS 2, TUV, 115/230V SPLIT PACK PCB MOUNT / FS12-200-C2

Part	Size / Dimension [x]	Size / Dimension [y]	Type	Termination Style	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Mounting Type	Secondary Winding(s)	Current - Output (Max)	Voltage - Secondary (Full Load)	Voltage - Isolation	Weight [custom]	Weight [custom]	Primary Winding(s)	Voltage - Primary	Weight	Weight	Height - Seated (Max) [Max]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]
Triad Magnetics FS12-200-C2	34.93 mm	28.58 mm	Laminated Core	PC Pin	2.4 VA	30.15 mm	Through Hole	Dual	200 mA 400 mA	6.3 V 12.6 V	4200 Vrms	113.4 g	0.25 lbs	Dual	115 V 230 V
Triad Magnetics FS48-125-C2	41.28 mm	33.32 mm	Laminated Core	PC Pin	6 VA	33.32 mm	Through Hole	Dual	125 mA 250 mA	24 V 48 V	4200 Vrms	199.58 g	0.44 lb	Dual	115 V 230 V
Triad Magnetics FS120-300	66.68 mm	55.55 mm	Laminated Core	PC Pin	36 VA		Through Hole	Dual	300 mA 600 mA	60 V 120 V	2500 Vrms			Dual	115 V 230 V	1.1 lbs	499 g	39.67 mm
Triad Magnetics FS120-01	34.93 mm	28.58 mm	Laminated Core	PC Pin	1.1 VA	23.8 mm	Through Hole	Dual		60 V 120 V	2500 Vrms	90.72 g	0.2 lb	Dual	115 V 230 V				10 mA	20 mA
Triad Magnetics FS56-020	34.93 mm	28.58 mm	Laminated Core	PC Pin	1.1 VA	23.8 mm	Through Hole	Dual		28 V 56 V	2500 Vrms			Dual	115 V 230 V	0.17 lb	77.11 g				40 mA	20 mA
Triad Magnetics FS36-350	47.63 mm	39.67 mm	Laminated Core	PC Pin	12 VA	36.5 mm	Through Hole	Dual	350 mA 700 mA		2500 Vrms			Dual	115 V 230 V	0.7 lb	317.51 g						18 V	36 V
Triad Magnetics FS48-750	66.68 mm	55.55 mm	Laminated Core	PC Pin	36 VA		Through Hole	Dual	1.5 A 750 mA	24 V 48 V	2500 Vrms			Dual	115 V 230 V	1.1 lbs	499 g	39.67 mm
Triad Magnetics FS56-045	34.93 mm	28.58 mm	Laminated Core	PC Pin	2.5 VA	30.15 mm	Through Hole	Dual		28 V 56 V	2500 Vrms	113.4 g	0.25 lbs	Dual	115 V 230 V						90 mA	45 mA
Triad Magnetics FS10-110-C2	34.93 mm	28.58 mm	Laminated Core	PC Pin	1.1 VA	23.8 mm	Through Hole	Dual		5 V 10 V	4200 Vrms			Dual	115 V 230 V	0.17 lb	77.11 g				220 mA	110 mA
Triad Magnetics FS16-150	34.93 mm	28.56 mm	Laminated Core	PC Pin	2.4 VA	30.15 mm	Through Hole	Dual	150 mA 300 mA	8 V 16 V	2500 Vrms	113.4 g	0.25 lbs	Dual	115 V 230 V
