BR24H08FVT-5AC Series

8KBit, I²C BUS, High Speed Write Cycle, High Endurance, Serial EEPROM for Automotive (125℃ Operation)

Catalog

8KBit, I²C BUS, High Speed Write Cycle, High Endurance, Serial EEPROM for Automotive (125℃ Operation)

Part	Memory Type	Supplier Device Package	Memory Size	Technology	Mounting Type	Qualification	Write Cycle Time - Word, Page	Package / Case	Package / Case [custom]	Package / Case [custom]	Memory Format	Voltage - Supply [Max]	Voltage - Supply [Min]	Grade	Memory Interface	Memory Organization	Operating Temperature [Min]	Operating Temperature [Max]

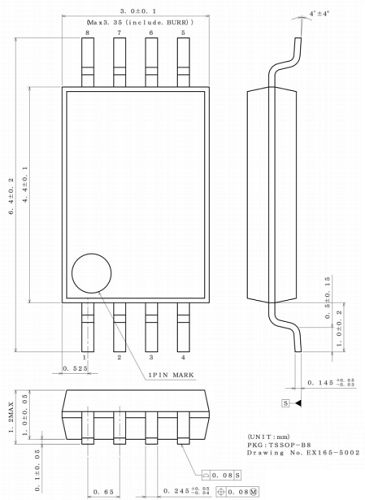

Rohm Semiconductor BR24H08FVT-5ACE2	Non-Volatile	8-TSSOP-B	8 Kbit	EEPROM	Surface Mount	AEC-Q100	3.5 ms	8-TSSOP	0.173 "	4.4 mm	EEPROM	5.5 V	1.7 V	Automotive	I2C	1K x 8	-40 °C	125 °C

Catalog

8KBit, I²C BUS, High Speed Write Cycle, High Endurance, Serial EEPROM for Automotive (125℃ Operation)

Key Features

• AEC-Q100 Qualified (Grade 1), All Controls Available by 2 Ports of Serial Clock (SCL)and Serial Data (SDA), 1.7V to 5.5V Wide Limit of Operating Voltage,Possible 1 MHz Operation, Page Write Mode 16Byte, Bit Format 1K x 8bit, Low Current Consumption, Prevention of MiswritingWP (Write Protect) Function AddedPrevention of Miswriting at Low Voltage, Noise Filter Built in SCL/SDA Pin, Initial Delivery State FFh

Description

BR24H08xxx-5AC Series is a 8Kbit serial EEPROM of I²C BUS Interface.
