PSQ24495 Series

Catalog

PANEL,DBAND,91CM,NM 2.4-6.0,5DBI,

Part	Power - Max [Max]	Number of Bands	Ingress Protection	RF Family/Standard	Termination	Applications	Frequency Range [Max]	Frequency Range [Min]	Gain	VSWR	Antenna Type	Height (Max) [diameter]	Height (Max) [diameter]	Frequency Group	Mounting Type
TE Connectivity AMP Connectors PSQ24495-91NM
TE Connectivity AMP Connectors PSQ24495-91NM	10 W	2	IP67	WiFi	N Type Male	WiBro	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount
TE Connectivity AMP Connectors PSQ24495-91RSM	10 W	2	IP67	WiFi	RP-SMA	Wi-Fi	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount

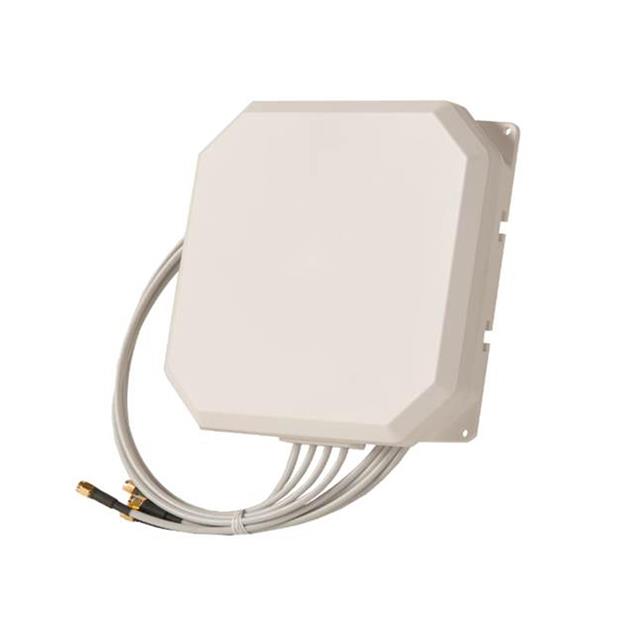

TE Connectivity AMP Connectors PSQ24495-91NF	10 W	2	IP67	WiFi	N Type Female	WiBro	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount
TE Connectivity AMP Connectors PSQ24495-91NM	10 W	2	IP67	WiFi	N Type Male	WiBro	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount
TE Connectivity AMP Connectors PSQ24495-91RSM	10 W	2	IP67	WiFi	RP-SMA	Wi-Fi	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount
TE Connectivity AMP Connectors PSQ24495-91NF	10 W	2	IP67	WiFi	N Type Female	WiBro	2.5 GHz 6 GHz	2.4 GHz 4.9 GHz	7.7 dBi	2	Flat Panel	1.575 in	40 mm	SHF UHF	Bracket Mount
