W8382-2 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

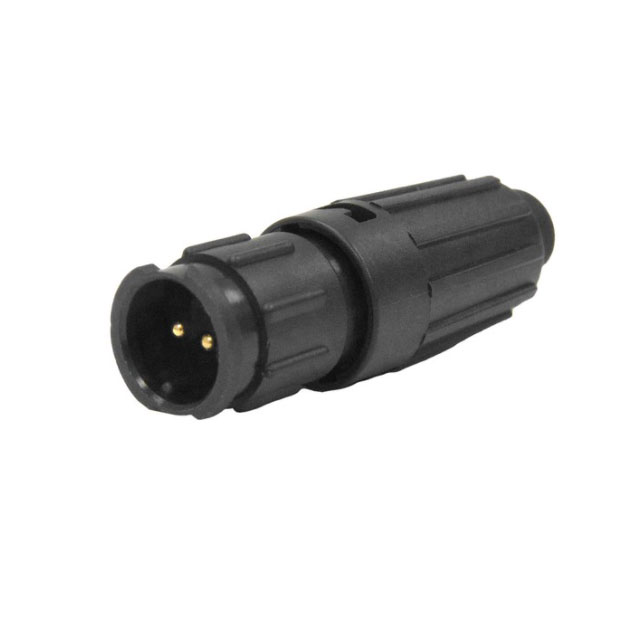

MINI-CON-X INSTA-CLICK CONNECTOR
| Part | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Backshell Material, Plating | Applications | Contact Material | Shielding | Features | Color | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Number of Positions | Current Rating (Amps) | Orientation | Insert Material | Shell Material | Contact Finish - Mating | Connector Type | Voltage Rating | Ingress Protection | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 6.6 mm | 0.26 " | 7.24 mm | 0.285 in | Thermoplastic | Automotive Communication Systems Instrumentation | Copper Alloy | Unshielded | Backshell Coupling Nut UV Resistant | Black | Plastic | 85 °C | -40 C | Bayonet Lock | 2 | Varies by Wire Gauge | Keyed | Thermoplastic | Polybutylene Terephthalate (PBT) | Gold | Plug Male Pins | 300 VAC | IP66 IP67 IP68 | Free Hanging (In-Line) |
