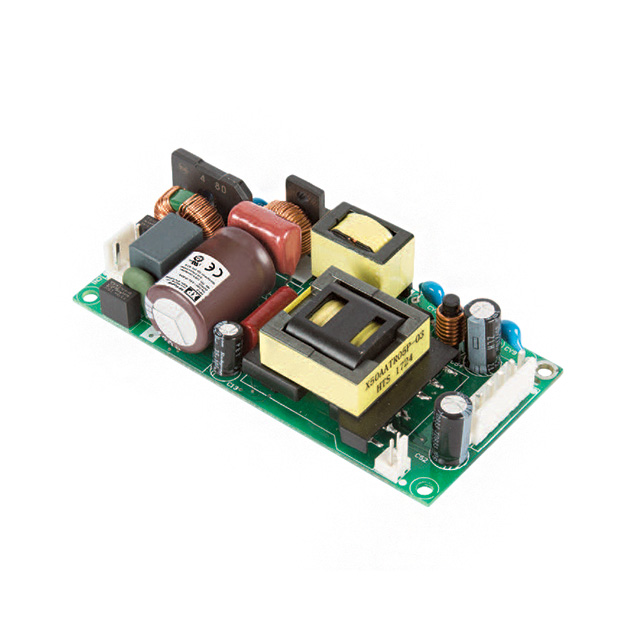

EPL150 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 15V 100W
| Part | Minimum Load Required | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Standard Number | Voltage - Isolation | Efficiency | Power (Watts) | Power (Watts) | Applications | Number of Outputs | Type | Voltage - Output 1 | Mounting Type | Approval Agency | Current - Output 1 | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 150 W | ITE (Commercial) Medical | 1 | Open Frame | 15 V | Chassis Mount | CB TUV UL | 6.67 A | ||
 XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 150 W | ITE (Commercial) Medical | 1 | Open Frame | 24 V | Chassis Mount | CB TUV UL | 4.17 A | ||
XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 149 W | ITE (Commercial) Medical | 1 | Open Frame | 48 V | Chassis Mount | CB TUV UL | 2.08 A | ||
XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 98 W | 151 W | ITE (Commercial) Medical | 1 | Open Frame | 28 V | Chassis Mount | CB TUV UL | 3.5 A | ||
XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 150 W | ITE (Commercial) Medical | 1 | Open Frame | 12 V | Chassis Mount | CB TUV UL | 8.33 A | ||
XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 150 W | ITE (Commercial) Medical | 1 | Open Frame | Chassis Mount | CB TUV UL | 2.78 A | 36 V | ||
XP Power | 80 VAC | 264 VAC | 70 °C | -20 °C | PFC Universal Input | 62368-1 | 4000 V | 93 % | 100 W | 150 W | ITE (Commercial) Medical | 1 | Open Frame | 18 V | Chassis Mount | CB TUV UL | 5.56 A |
