53K507 Series
Manufacturer: Rosenberger
Beta
⌘K

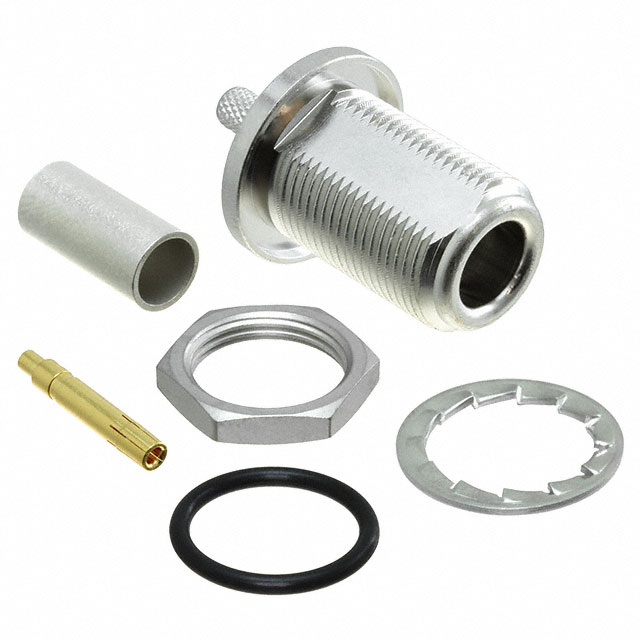

CONN N TYPE JACK STR 50OHM CRIMP
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Includes | Voltage Rating | Body Finish | Insertion Loss | Dielectric Material | Housing Color | Connector Type | Mounting Feature | Number of Ports | Ingress Protection | Shield Termination | Cable Group | Cable Group | Frequency - Max [Max] | Connector Style | Fastening Type | Contact Termination | Center Contact Material | Impedance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 85 °C | -25 °C | 500 | Gold | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | 500 V | White Bronze | 0.05 dB | Polytetrafluoroethylene (PTFE) | Silver | Female Socket Jack | Bulkhead - Front Side Nut | 1 | IP67 - Dust Tight Waterproof | Crimp | 223 400 | RG-142B | 11 GHz | N Type | Threaded | Crimp | Bronze | 50 Ohms | Panel Mount |
