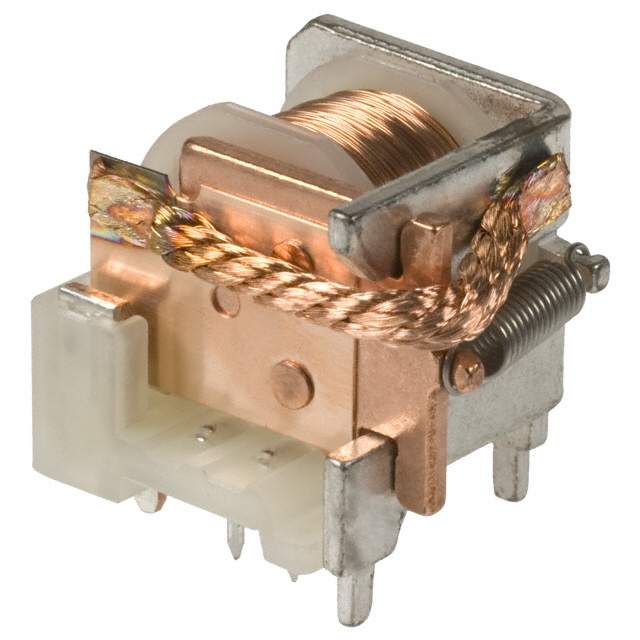

VKP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Must Release Voltage | Coil Current | Coil Voltage | Coil Type | Operate Time | Contact Rating (Current) | Switching Voltage [Max] | Mounting Type | Termination Style | Must Operate Voltage | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 90 Ohms | 1.6 W | 125 °C | -40 C | 3 ms | 1.2 VDC | 133 mA | 12 VDC | Non Latching | 5 ms | 40 A | 14 VDC | Through Hole | PC Pin | 6.8 VDC | SPDT (1 Form C) |
TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 90 Ohms | 1.6 W | 125 °C | -40 C | 3 ms | 1.2 VDC | 133 mA | 12 VDC | Non Latching | 5 ms | 40 A | 14 VDC | Through Hole | PC Pin | 6.8 VDC | SPST-NO (1 Form A) |
 TE Connectivity AMP Connectors | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | 125 °C | -40 C | 3 ms | 1.2 VDC | 133 mA | 12 VDC | Non Latching | 5 ms | 40 A | 14 VDC | Through Hole | PC Pin | 6.8 VDC | SPDT (1 Form C) |
