S4SM Series

Catalog

LED COB SUNLIKE WM WHT SQ 2700K

Part	Light Emitting Surface (LES) [diameter]	Current - Test	Lens Type	Type	Height [z]	Viewing Angle	Current - Max [Max]	Color	Temperature - Test	CCT (K)	CCT (K)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature
Seoul Semiconductor Inc. S4SM-1063279736-0B000G3S-00001	9.8 mm	290 mA	Flat	Chip On Board (COB)	1.45 mm	115 °	580 mA	Warm White	85 °C	2700 K	3-Step MacAdam Ellipse	89 lm/W	97	13.5 mm	13.5 mm	34.8 V	Square

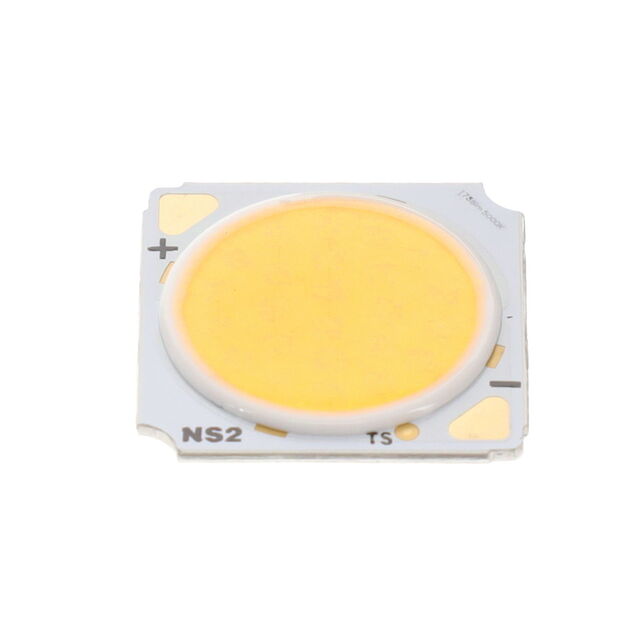

Seoul Semiconductor Inc. S4SM-1564509736-0B500H3S-00001	14.5 mm	430 mA	Flat	Chip On Board (COB)	1.45 mm	115 °	860 mA	Cool White	85 °C	5000 K	3-Step MacAdam Ellipse	108 lm/W	97	19 mm	19 mm	35 V	Square	1620 lm
Seoul Semiconductor Inc. S4SM-1566279736-0C500H3S-00001	14.5 mm	720 mA	Flat	Chip On Board (COB)	1.45 mm	115 °	1.44 A	Warm White	85 °C	2700 K	3-Step MacAdam Ellipse	90 lm/W	97	19 mm	19 mm	35.2 V	Square	2275 lm
Seoul Semiconductor Inc. S4SM-0661509736-0A600H3S-00001	6 mm	170 mA	Flat	Chip On Board (COB)	1.45 mm	115 °	260 mA	Cool White	85 °C	5000 K	3-Step MacAdam Ellipse	95 lm/W	97	13.5 mm	13.5 mm	36.1 V	Square	585 lm

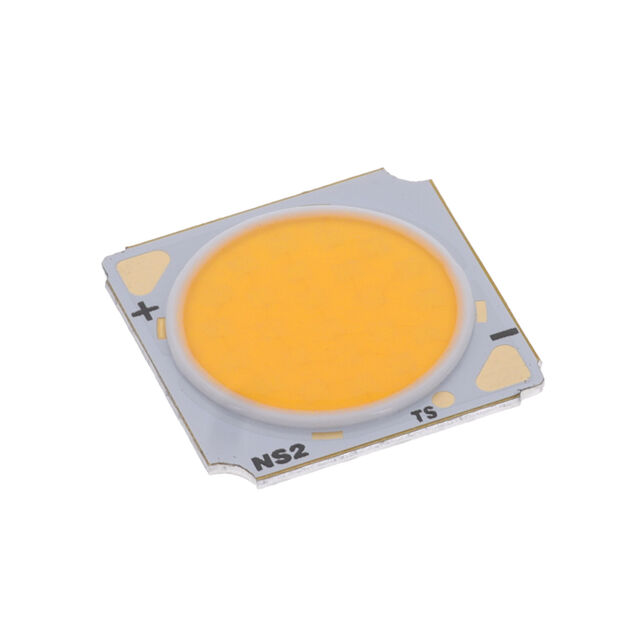

Seoul Semiconductor Inc. S4SM-1564409736-0B500H3S-00001	14.5 mm	430 mA	Flat	Chip On Board (COB)	1.45 mm	115 °	860 mA	Neutral White	85 °C	4000 K	3-Step MacAdam Ellipse	103 lm/W	97	19 mm	19 mm	35 V	Square	1550 lm
