ST24Z Series
Manufacturer: E-Switch
Beta
⌘K

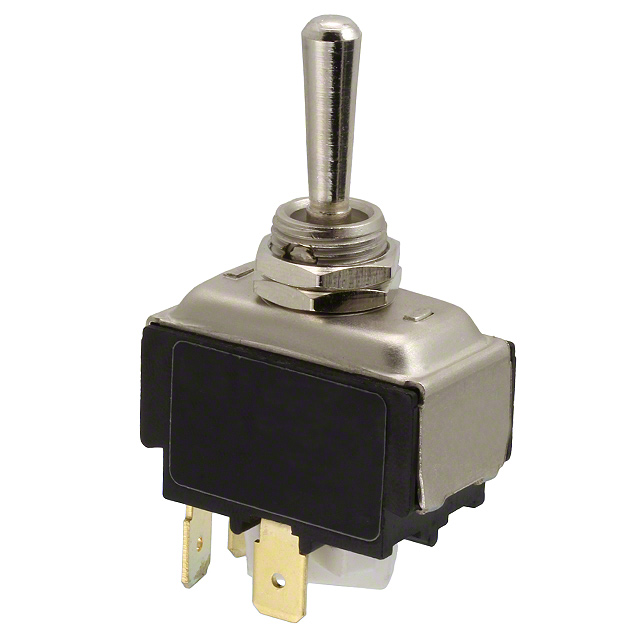

SWITCH TOGGLE DPDT 20A 125V
| Part | Actuator Material | Electrical Life | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Switch Function | Current Rating (Amps) | Bushing Thread | Actuator Length [x] | Circuit | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Features | Termination Style | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Brass Nickel Plated | 6000 Cycles | Standard Round | 0 °C | 85 °C | Panel Mount | Mom-Off-Mom | 20 A | M12 x 1 | 17.5 mm | DPDT | 125 V | 12 mm | Terminal Bridging Option | Quick Connect - 0.250" (6.3mm) | Non-Illuminated |
