TR9KE7080 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

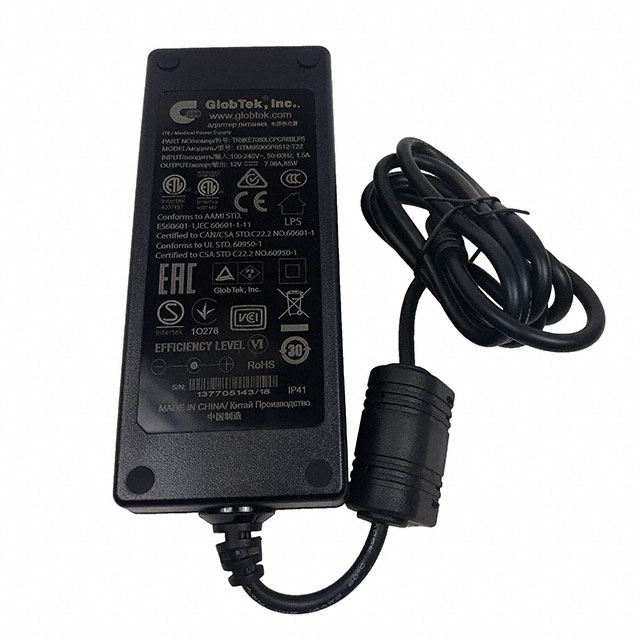

AC/DC DESKTOP ADAPTER 12V 85W
| Part | Applications | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Form | Region Utilized | Polarization | Power (Watts) | Current - Output (Max) [Max] | Voltage - Output | Cord Length | Cord Length | Approval Agency | Input Type | Efficiency | Input Connector | No Load Power Consumption | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [diameter] | Output Connector | Output Connector [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | Household Appliances ITE (Commercial) Medical | 1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | 50 °C | 0 °C | Desktop (Class II) | International | Positive Center | 85 W | 7.08 A | 12 V | 1.2 m | 47.2 in | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI | Cord (Sold Separately) | Level VI | IEC 320-C8 | 150 mW | 264 VAC | 90 VAC | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | 2.46 in | 149.4 mm | 33.5 mm | 5.88 " | 62.6 mm | 1.32 in |
