S6E2HE6 Series

Manufacturer: INFINEON

Catalog

IC MCU 32BIT 544KB FLASH 100LQFP

Part	Oscillator Type	Peripherals	Speed	Mounting Type	Connectivity	Program Memory Type	Core Size	Supplier Device Package	Program Memory Size	Number of I/O [custom]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	Core Processor	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of I/O

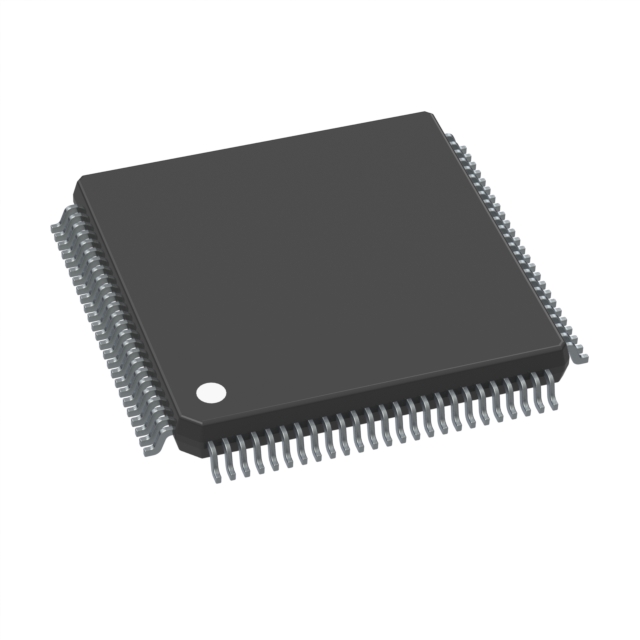

INFINEON S6E2HE6F0AGV20000	Internal	DMA LVD POR PWM WDT	160 MHz	Surface Mount	CSIO EBI/EMI I2C LINbus SD UART/USART	FLASH	32-Bit	100-LQFP (14x14)	544 KB	80	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	ARM® Cortex®-M4F	64 K	125 °C	-40 °C	100-LQFP
INFINEON S6E2HE6F0AGV2000M	Internal	DMA LVD POR PWM WDT	160 MHz	Surface Mount	CSIO EBI/EMI I2C LINbus SD UART/USART	FLASH	32-Bit	100-LQFP (14x14)	544 KB	80	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	ARM® Cortex®-M4F	64 K	125 °C	-40 °C	100-LQFP
INFINEON S6E2HE6F0AGV2000A	Internal	DMA LVD POR PWM WDT	160 MHz	Surface Mount	CSIO EBI/EMI I2C LINbus SD UART/USART	FLASH	32-Bit 32-Bit Single-Core	100-LQFP (14x14)	544 KB	80	5.5 V	2.7 V	A/D 24x12b D/A 2x12b	ARM® Cortex®-M4F	64 K	125 °C	-40 °C	100-LQFP

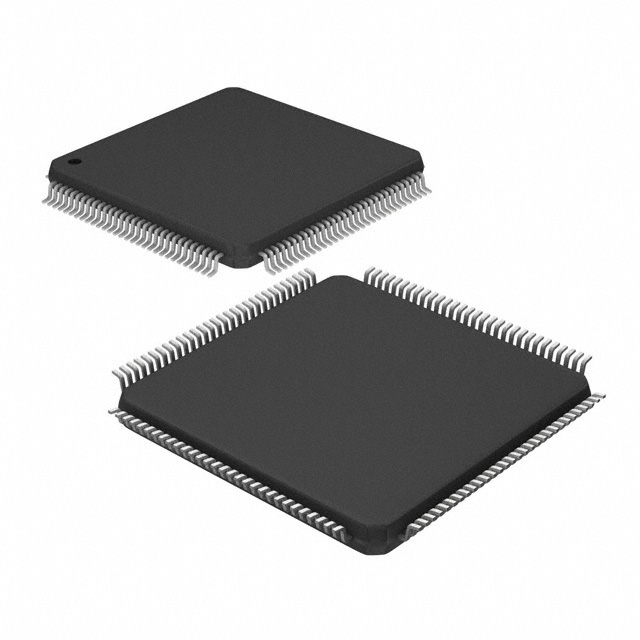

INFINEON S6E2HE6G0AGV2B000	Internal	DMA LVD POR PWM WDT	160 MHz	Surface Mount	CSIO EBI/EMI I2C LINbus SD UART/USART	FLASH	32-Bit 32-Bit Single-Core	120-LQFP (16x16)	544 KB		5.5 V	2.7 V	A/D 24x12b D/A 2x12b	ARM® Cortex®-M4F	64 K	125 °C	-40 °C	120-LQFP	100
