2EDL8023 Series
Manufacturer: INFINEON
Beta
⌘K
2EDL8023G3C IS A HIGH-SIDE AND LOW-SIDE DRIVER DESIGNED FOR ADVANCED SWITCHING CONVERTERS SUCH AS IN TELECOM AND DATACOM APPLICATIONS
| Part | Gate Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Number of Drivers | Channel Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplier Device Package | Rise / Fall Time (Typ) | Package / Case | Driven Configuration | High Side Voltage - Max (Bootstrap) [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

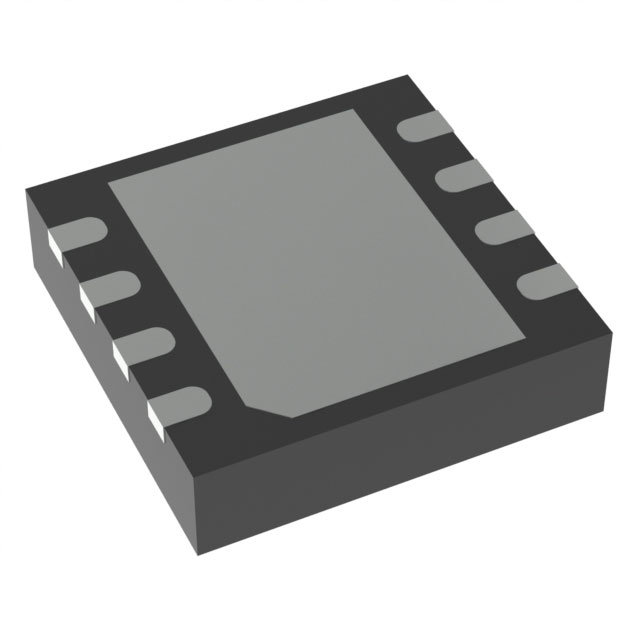

 INFINEON | MOSFET (N-Channel) N-Channel MOSFET | 5 A | 3 A | 2 | Independent | -40 C | 125 °C | Surface Mount | PG-VDSON-8-4 | 45 ns | 8-VDFN Exposed Pad | High-Side and Low-Side | 120 V | 8 V | 17 V | Non-Inverting |
 INFINEON | MOSFET (N-Channel) N-Channel MOSFET | 3 A | 3 A | 2 | Independent | -40 C | 125 °C | Surface Mount | PG-VDSON-8-4 | 45 ns | 8-VDFN Exposed Pad | High-Side and Low-Side | 90 V | 8 V | 17 V | Non-Inverting |
