960204 Series
Manufacturer: 3M (TC)
Beta
⌘K

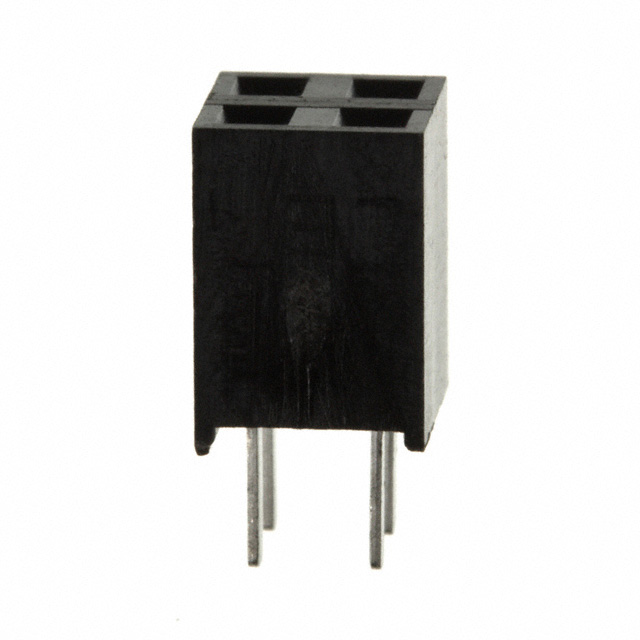

CONN RCPT 4POS 0.1 GOLD PCB
| Part | Contact Finish - Post | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Contact Length - Post | Contact Length - Post | Voltage Rating | Connector Type | Contact Type | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Contact Finish - Mating | Number of Positions | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Rows | Insulation Material | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Tin | UL94 V-0 | 0.1 in | 2.54 mm | Solder | Through Hole | 0.118 in | 3 mm | 1000 VDC | Receptacle | Female Socket | Square | 2.54 mm | 0.1 in | Push-Pull | Gold | 4 | Copper Alloy | 1.02 Ám | 40 Áin | 2 A | Flash | 0.28 in | 7.1 mm | -25 °C | 105 ░C | Black | 2 | Thermoplastic | All |
