320855 Series

Catalog

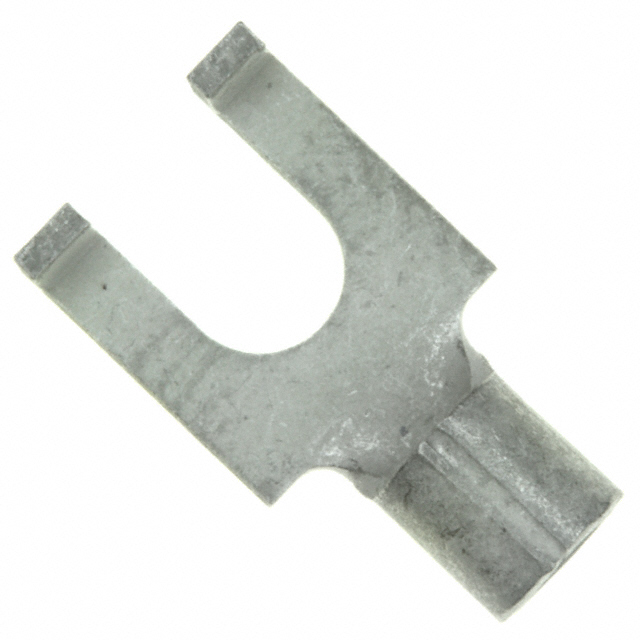

CONN SPADE TERM 14-16AWG #6

Part	Mounting Type	Length - Termination [x]	Length - Termination [x]	Contact Material	Features	Stud/Tab Size	Insulation	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges	Width - Outer Edges [custom]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination
TE Connectivity Raychem Cable Protection 2-320855-1	Free Hanging (In-Line)	0.181 in	4.6 mm	Copper	Brazed Seam Serrated Termination	6 Stud	Non-Insulated	Flanged	3.68 mm	0.145 in	7.47 mm	0.294 in	Tin	13.84 mm	0.545 in	0.203 in	5.16 mm	Crimp
TE Connectivity Raychem Cable Protection 8-320855-1	Free Hanging (In-Line)	0.181 in	4.6 mm	Copper	Brazed Seam Serrated Termination	6 Stud	Non-Insulated	Flanged	3.68 mm	0.145 in	7.47 mm	0.294 in	Tin	13.84 mm	0.545 in	0.203 in	5.16 mm	Crimp
