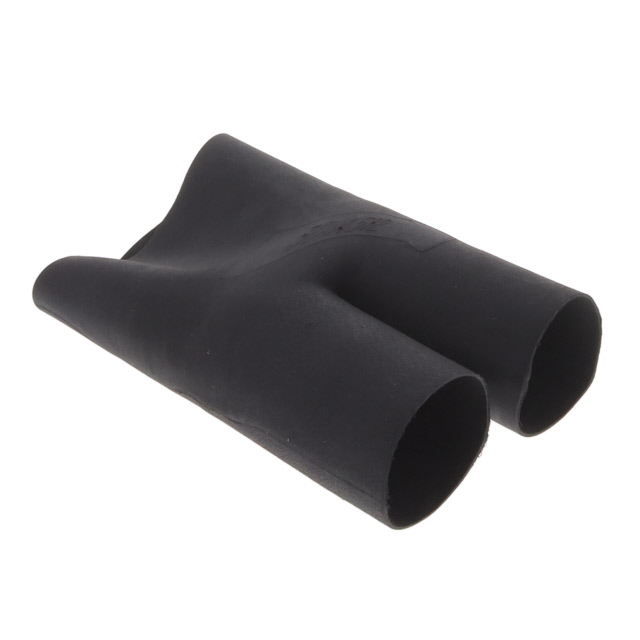

301A512 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
BLOW-MOLDED PARTS
| Part | Shell Size - Insert | Large Recovered Length [x] | Large Recovered Length [x] | Large Diameter Recovered [diameter] | Large Diameter Recovered [diameter] | Large Diameter Supplied | Large Diameter Supplied | Total Length Recovered | Total Length Recovered | Type | Color | Small Recovered Length [custom] | Small Recovered Length | Material | Small Diameter Supplied | Small Diameter Supplied [diameter] | Small Diameter Recovered [diameter] | Small Diameter Recovered [diameter] | Small Diameter Supplied [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | |||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.43 mm | 0.45 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | Polyolefin (PO) Flexible | 22.86 mm | 0.9 " | 0.45 in | 11.43 mm | |
TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.43 mm | 0.45 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | Polyolefin (PO) Flexible | 22.86 mm | 0.9 " | 0.45 in | 11.43 mm | |
 TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.4 mm | 0.449 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | VPB Flexible | 0.902 in | 0.449 " | 11.4 mm | 22.91 mm | |
 TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.4 mm | 0.449 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | EPB | 0.902 in | 0.449 " | 11.4 mm | 22.91 mm | |
TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.43 mm | 0.45 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | Polyolefin (PO) Flexible | 22.86 mm | 0.9 " | 0.45 in | 11.43 mm | |
TE Connectivity Aerospace, Defense and Marine | 12 | 2.37 in | 60.2 mm | 11.43 mm | 0.45 " | 34.29 mm | 1.35 in | 120.4 mm | 4.74 in | Boot Transition - Breakout 2:1 (T) | Black | 2.37 in | 60.2 mm | Elastomer Fluid Resistant | 22.86 mm | 0.9 " | 0.45 in | 11.43 mm |
