RDTBR10 Series

Manufacturer: E-Switch

Catalog

SWITCH ROTARY DIP BCD 0.15A 42V

Part	Mechanical Life	Length [x]	Length [x]	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Washable	Circuit	Voltage Rating	Mounting Type	Height Above Board [z]	Height Above Board [z]	Actuator Level	Contact Finish	Termination Style	Actuator Type	Features	Number of Positions	Pitch	Pitch

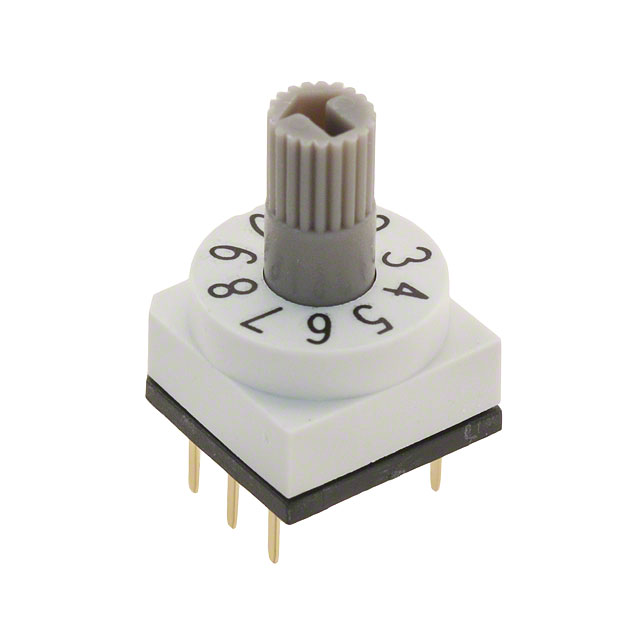

E-Switch RDTBR10P1T	10000 Steps	0.394 in	10 mm	10000 Cycles	85 °C	-40 C		BCD	42 VDC	Through Hole	13.8 mm	0.543 in	Raised	Gold	PC Pin	Rotary with Shaft	IP67 - Dust Tight Waterproof	10	2.54 mm	0.1 "
