414-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 56POS 0.1 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Fastening Type	Current Rating (Amps)	Insulation Height	Insulation Height	Connector Type	Contact Finish - Mating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Finish - Post
Mill-Max Manufacturing Corp. 414-43-256-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	56	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-214-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	14	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-264-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	64	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-204-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	4	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-258-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	58	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin

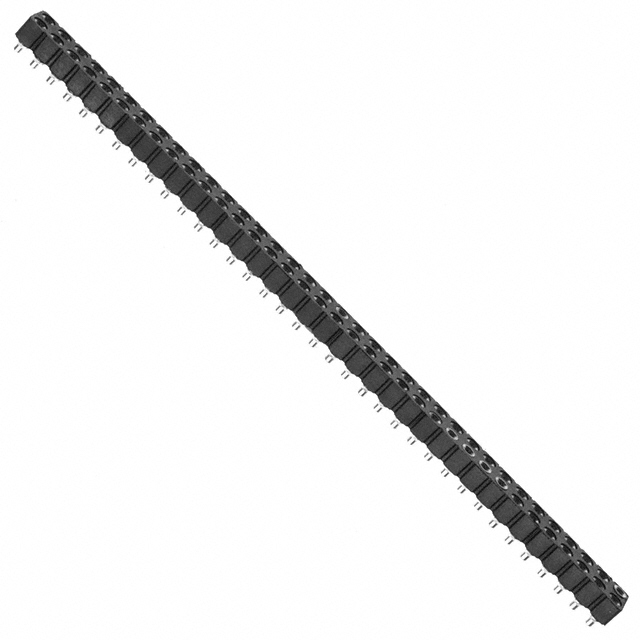

Mill-Max Manufacturing Corp. 414-43-272-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	72	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-250-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	50	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-224-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	24	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-228-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	28	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
Mill-Max Manufacturing Corp. 414-43-226-41-117000	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	All	UL94 V-0	Black	Solder	-55 C	125 °C	Surface Mount	0.1 in	2.54 mm	26	0.76 Ám	30 Áin	Female Socket	Push-Pull	3 A	4.22 mm	0.166 "	Receptacle	Gold	2	0.1 "	2.54 mm	Tin
