86380 Series

Catalog

CONN HEADER VERT 24POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Fastening Type	Material Flammability Rating	Mounting Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Height	Insulation Height	Insulation Material	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Contact Shape	Number of Positions	Contact Finish - Post

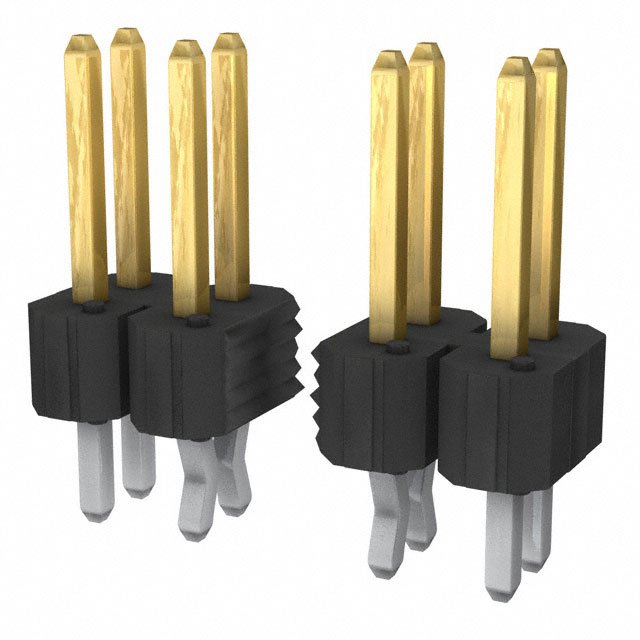

Amphenol ICC (FCI) 86380-124HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	24	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square
Amphenol ICC (FCI) 86380-172	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	72	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm		Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square
Amphenol ICC (FCI) 86380-116HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole		0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square	16

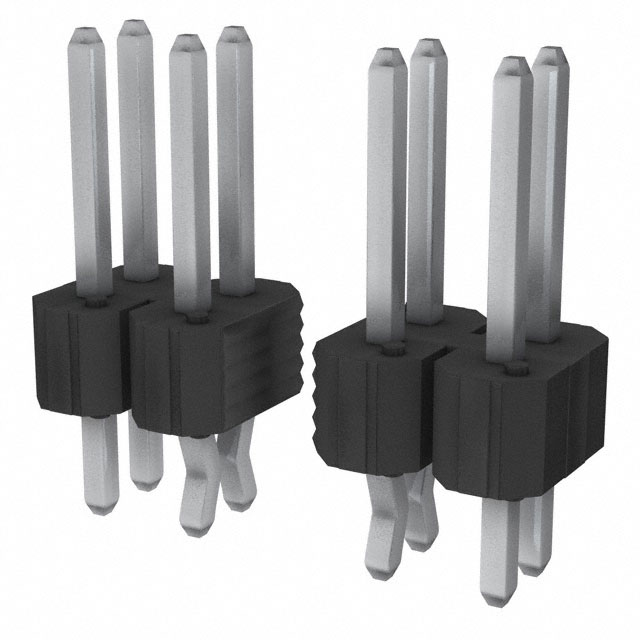

Amphenol ICC (FCI) 86380-410HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	10	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze		100 çin	2.54 çm	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square		Tin
Amphenol ICC (FCI) 86380-424HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	24	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze		100 çin	2.54 çm	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square		Tin
Amphenol ICC (FCI) 86380-102	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	2	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm		Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header			2	Male Pin	Square
Amphenol ICC (FCI) 86380-170H	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	70	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square

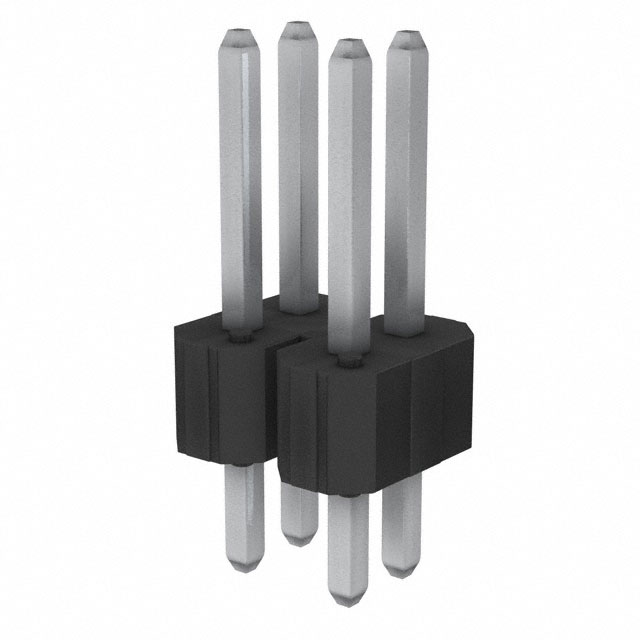

Amphenol ICC (FCI) 86380-404HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	4	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze		100 çin	2.54 çm	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square		Tin
Amphenol ICC (FCI) 86380-420HLF	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	20	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Phosphor Bronze		100 çin	2.54 çm	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square		Tin
Amphenol ICC (FCI) 86380-110H	11.94 mm	0.47 "	All	Black	6.35 mm	0.25 in	Push-Pull	UL94 V-0	Through Hole	10	0.12 in	3.05 mm	Kinked Pin Solder	0.1 in	2.54 mm		Phosphor Bronze	Gold or Gold GXT™	30 Áin	0.76 Ám	Unshrouded	2.54 mm	0.1 in	Header	0.1 in	2.54 mm	2	Male Pin	Square
