3580/37 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

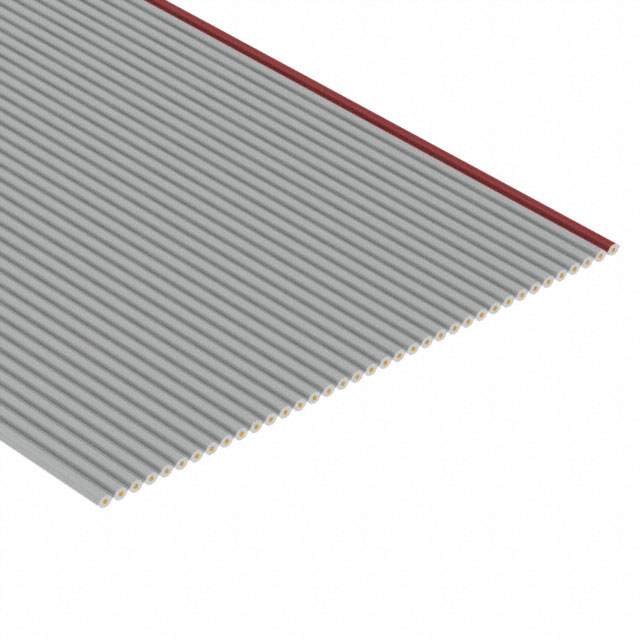

RIBBON CABLE, FLAT, UNSHIELDED, 37 CONDUCTOR, 28 AWG, 0.09 MM², 100 FT, 30.5 M
| Part | First Conductor Mark | Conductor Material | Shielding | Ribbon Width [custom] | Ribbon Width [custom] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Pitch | Pitch | Voltage | Ribbon Thickness | Ribbon Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Ratings | Number of Conductors | Wire Gauge | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Red | Copper Tinned | Unshielded | 46.99 mm | 1.85 in | Gray | 36 AWG | 7 Strands | 100 ' | 30.48 m | 0.05 in | 1.27 mm | 300 VDC | 0.033 " | 0.84 mm | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 37 | 28 AWG | Flat Cable |
