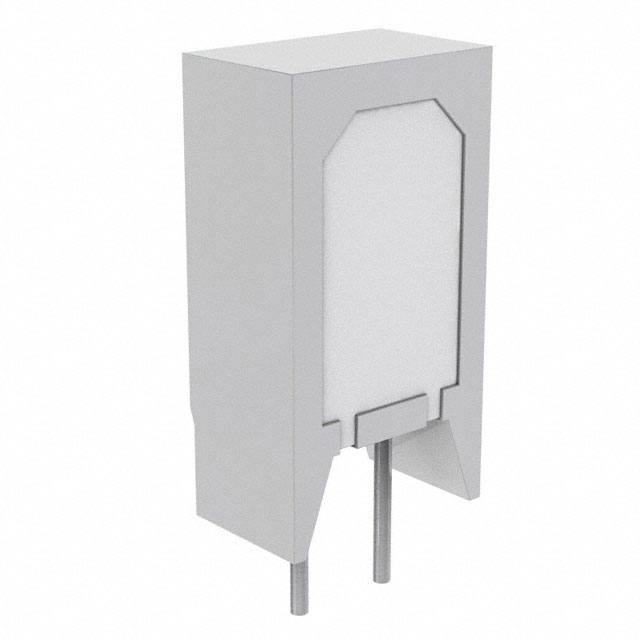

CPCF Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE CPCF-5 68K 10% B32

Part	Tolerance	Size / Dimension Width	Size / Dimension Length	Number of Terminations	Height - Seated (Max)	Temperature Coefficient	Features	Package / Case	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Composition	Power (Watts)
Vishay Dale CPCF0568K00KB32	10 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	68 kOhm	225 °C	-65 °C	Metal Film	5 W
Vishay Dale CPCF0324K00JB32	5 %	0.315 in	0.472 in	2	0.984 in	50 ppm/°C	Flame Proof Safety	Radial	24 kOhm	225 °C	-65 °C	Metal Film	3 W
Vishay Dale CPCF03100K0JE32	5 %	0.315 in	0.472 in	2	0.984 in	50 ppm/°C	Flame Proof Safety	Radial	100 kOhm	225 °C	-65 °C	Metal Film	3 W
Vishay Dale CPCF0515K00JB32	5 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	15 kOhm	225 °C	-65 °C	Metal Film	5 W
Vishay Dale CPCF0368K00JE32	5 %	0.315 in	0.472 in	2	0.984 in	50 ppm/°C	Flame Proof Safety	Radial	68 kOhm	225 °C	-65 °C	Metal Film	3 W
Vishay Dale CPCF0340K20FB31	1 %	0.315 in	0.472 in	2	0.984 in	50 ppm/°C	Flame Proof Safety	Radial	40.2 kOhm	225 °C	-65 °C	Metal Film	3 W
Vishay Dale CPCF0547K00FB32	1 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	47 kOhm	225 °C	-65 °C	Metal Film	5 W
Vishay Dale CPCF0520K00JB31	5 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	20 kOhm	225 °C	-65 °C	Metal Film	5 W
Vishay Dale CPCF053K900JB31	5 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	3.9 kOhm	225 °C	-65 °C	Metal Film	5 W
Vishay Dale CPCF0520K00JE32	5 %	0.354 in	0.512 in	2	1.003 in	50 ppm/°C	Flame Proof Safety	Radial	20 kOhm	225 °C	-65 °C	Metal Film	5 W
