G861F04 Series

Catalog

PROTECT HEADER 2.0MM PITCH STR S

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Style	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Contact Material	Contact Finish - Post	Shrouding	Number of Positions	Termination	Contact Type	Features	Connector Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]

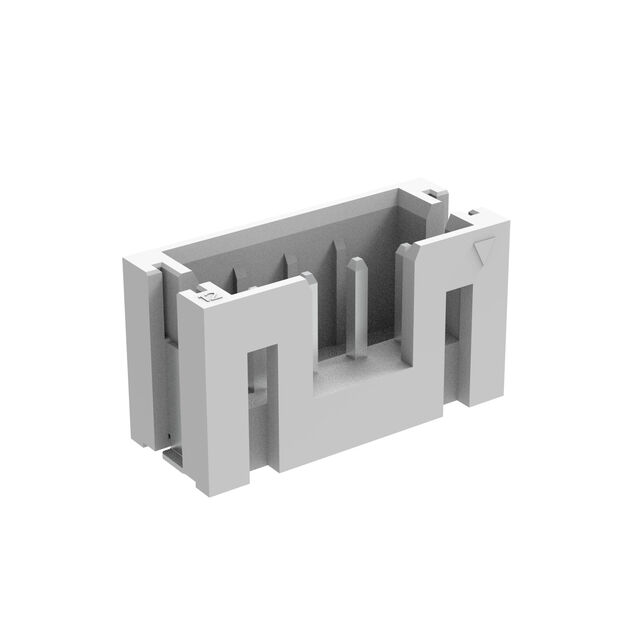

Amphenol ICC (Commercial Products) G861F04131TEU	2.54 µm	100 µin	100 VAC	Surface Mount	0.079 "	2 mm	Board to Cable/Wire	All	UL94 V-0	0.256 in	6.5 mm	Nylon 9T Polyamide (PA9T)	100 çin	2.54 çm	1	2 A	Copper Alloy	Tin	Shrouded - 4 Wall	4	Solder	Male Pin	Pick and Place Solder Retention	Header	White	3.5 mm	0.138 in	Square	85 °C	-25 °C
