FGA.1K Series
Manufacturer: LEMO
Beta
⌘K

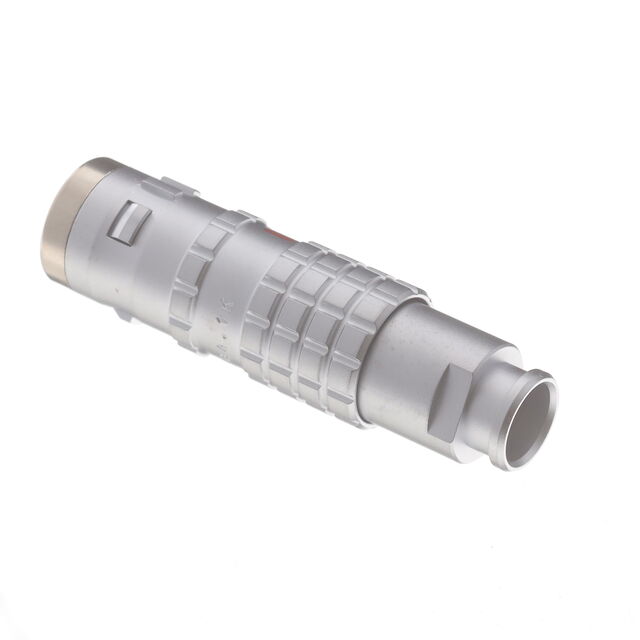

CONN PLUG MALE 8POS GOLD CRIMP
| Part | Features | Current Rating (Amps) | Fastening Type | Mounting Type | Connector Type | Shell Size - Insert | Shell Material | Contact Material | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Color | Orientation | Ingress Protection | Shielding | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Insert Material | Termination | Shell Finish | Contact Finish - Mating | Material Flammability Rating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backshell | 5 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 308 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 8 | Silver | A | IP66 IP68 | Shielded | 0.217 in | 5.1 mm | 0.201 in | 5.5 mm | Polyetheretherketone (PEEK) | Crimp | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | |
Backshell | 10 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 304 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 4 | Silver | A | IP66 IP68 | Shielded | 0.197 in | 4.6 mm | 0.181 " | 5 mm | Polyetheretherketone (PEEK) | Crimp | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | |
Backshell | 5 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 308 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 8 | Silver | A | IP66 IP68 | Shielded | 0.197 in | 4.6 mm | 0.181 " | 5 mm | Polyetheretherketone (PEEK) | Crimp | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | |
Backshell | 2 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 314 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 14 | Silver | A | IP66 IP68 | Shielded | 0.177 " | 4.1 mm | 0.161 in | 4.5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 2 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 314 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 14 | Silver | A | IP66 IP68 | Shielded | 0.197 in | 4.6 mm | 0.181 " | 5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 2 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 314 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 14 | Silver | A | IP66 IP68 | Shielded | 0.256 in | 6.1 mm | 0.24 " | 6.5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 15 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 302 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 2 | Silver | A | IP66 IP68 | Shielded | 0.256 in | 6.1 mm | 0.24 " | 6.5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 7 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 306 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 6 | Silver | A | IP66 IP68 | Shielded | 0.177 " | 4.1 mm | 0.161 in | 4.5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 5 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 308 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 8 | Silver | A | IP66 IP68 | Shielded | 0.256 in | 6.1 mm | 0.24 " | 6.5 mm | Polyetheretherketone (PEEK) | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal | ||
Backshell | 7 A | Push-Pull | Free Hanging (In-Line) | Plug Male Pins | 306 | Brass | Brass | Brass Chrome | 200 °C | -55 C | 6 | Silver | A | IP66 IP68 | Shielded | 0.236 in | 5.6 mm | 0.22 in | 6 mm | Polyetheretherketone (PEEK) | Crimp | Chrome | Gold | UL94 V-0 | 39.4 µin | 1 µm | Metal |
