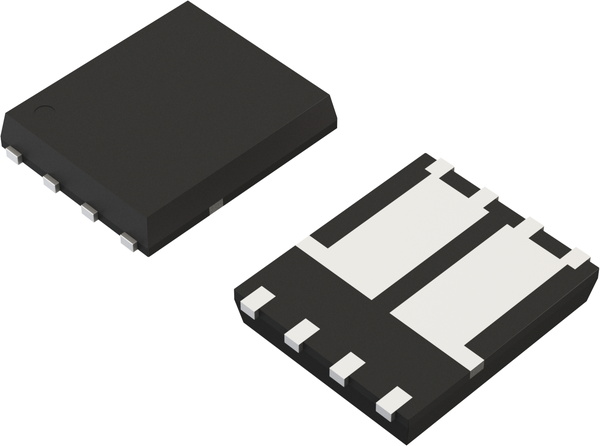

100V 8.5A, Dual Nch+Pch, HSOP8, Power MOSFET
Description
AI
HP8ME5 is a low on-resistance MOSFET ideal for switching applications.
Beta
⌘K
100V 8.5A, Dual Nch+Pch, HSOP8, Power MOSFET
100V 8.5A, Dual Nch+Pch, HSOP8, Power MOSFET
| Part | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Supplier Device Package | Technology | Operating Temperature | Power - Max | Package / Case | Rds On (Max) @ Id, Vgs | Mounting Type | Configuration | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 2.5 V | 3 A 8 A 8.5 A | 100 V | 8-HSOP | MOSFET (Metal Oxide) | 150 °C | 3 W 20 W | 8-PowerTDFN | 193 mOhm 273 mOhm | Surface Mount | N and P-Channel | 90 pF 590 pF | 2.9 nC 19.7 nC |
