AQV414 Series

Catalog

SSR RELAY SPST-NC 120MA 0-400V

Part	Output Type	Load Current	On-State Resistance (Max) [Max]	Supplier Device Package	Mounting Type	Voltage - Input	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Termination Style	Circuit

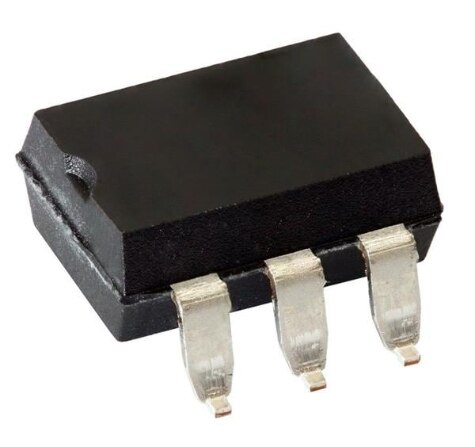

Panasonic Electronic Components AQV414EHAX	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount	1.14 VDC	7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414SZ	AC DC	100 mA	50 Ohm	6-SOP	Surface Mount	1.14 VDC			6-SOP (0.173" 4.40mm)	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414EAZ	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount		7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414HA	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount	1.14 VDC	7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414EHA	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount	1.14 VDC	7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414S	AC DC	100 mA	50 Ohm	6-SOP	Surface Mount	1.14 VDC			6-SOP (0.173" 4.40mm)	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414EAX	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount		7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
Panasonic Electronic Components AQV414HAZ	AC DC	120 mA	50 Ohm	6-SMD	Surface Mount	1.14 VDC	7.62 mm	0.3 in	6-SMD	85 °C	-40 C	400 V	Gull Wing	SPST-NC (1 Form B)
