OSTTE03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS SIDE ENTRY 7MM PCB
| Part | Screw Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Housing Material | Contact Material - Plating | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Current | Pitch | Pitch | Wire Termination | Features | Voltage | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

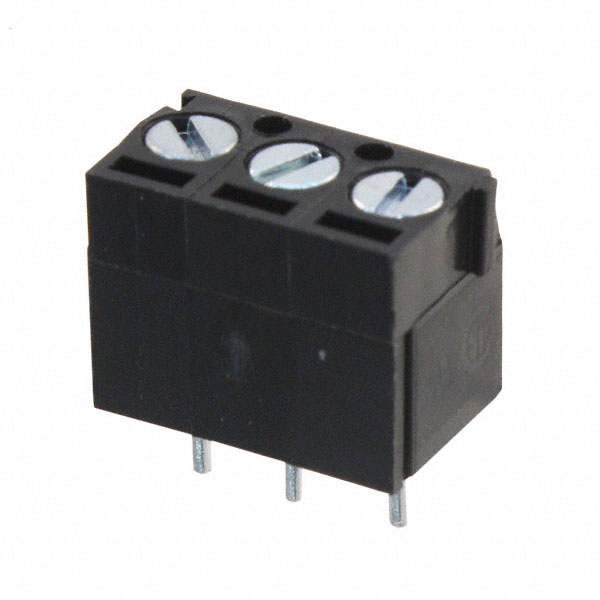

 On Shore Technology Inc. | Steel Galvanized - Chromate Plated | 1.3 Lb-In | 0.15 Nm | Stainless Steel | Polyamide (PA) Nylon | Brass | M2 | -33 °C | 120 °C | Horizontal with Board | 10 A | 7 mm | 0.276 in | Screw | Interlocking (Side) | 125 V | 3 | 26 AWG | 16 AWG | 1 | Through Hole | |
 On Shore Technology Inc. | Steel - Zinc Plated | 1.7 Lb-In | 0.2 Nm | Stainless Steel | Thermoplastic | Tin Plated | M2 | -40 C | 115 °C | Horizontal with Board | 10 A | 3.5 mm | 0.138 " | Screw - Leaf Spring Wire Guard | Interlocking (Side) | 125 V | 3 | 26 AWG | 16 AWG | 1 | Through Hole | Black |
