316-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

Part	Termination Rows	Material - Insulation	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Contact Type	Color	Mounting Type	Number of Positions	Read Out	Card Type	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 316-040-420-103	1	Polyester Thermoplastic	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount Through Hole	80	Dual	Non Specified - Dual Edge	Tin	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in

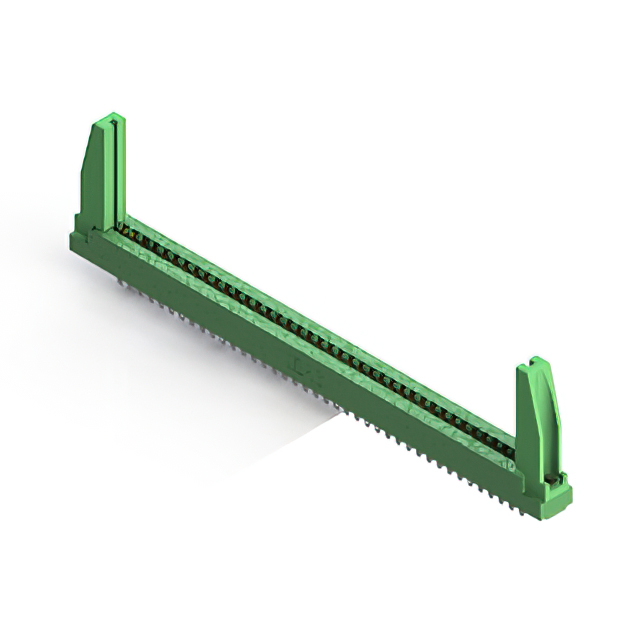

EDAC Inc. 316-040-500-178	1	Polyester Thermoplastic	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount	80	Dual	Non Specified - Dual Edge	Gold	Female	-40 C	105 ░C	Solder Eyelet(s)	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Guides

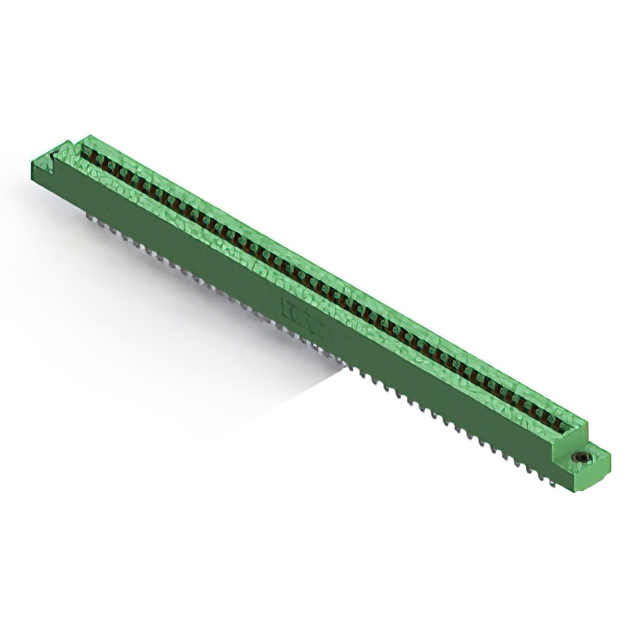

EDAC Inc. 316-040-500-107	1	Polyester Thermoplastic	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount	40	Dual	Non Specified - Dual Edge	Gold	Female	-40 C	105 ░C	Solder Eyelet(s)	3.96 mm	0.156 in	0.25 Ám	10 Áin

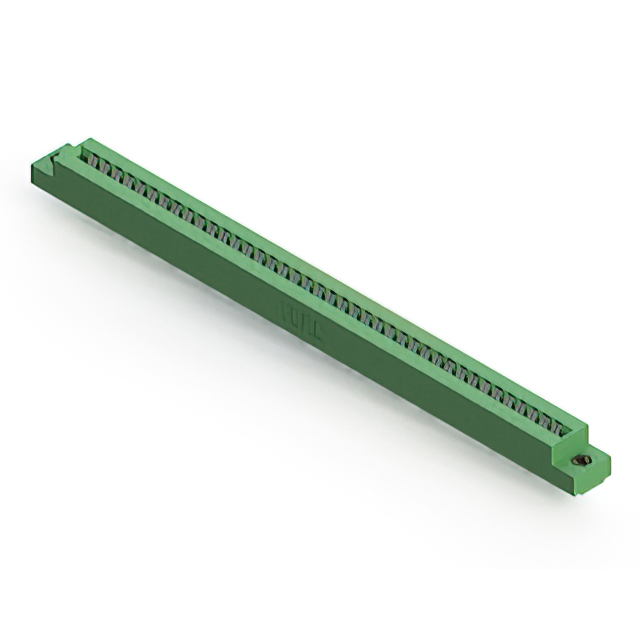

EDAC Inc. 316-040-420-108	1	Polyester Thermoplastic	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount Through Hole	80	Dual	Non Specified - Dual Edge	Tin	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in
EDAC Inc. 316-040-421-103	1	Polyester Thermoplastic	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount Through Hole	80	Dual	Non Specified - Dual Edge	Tin	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in

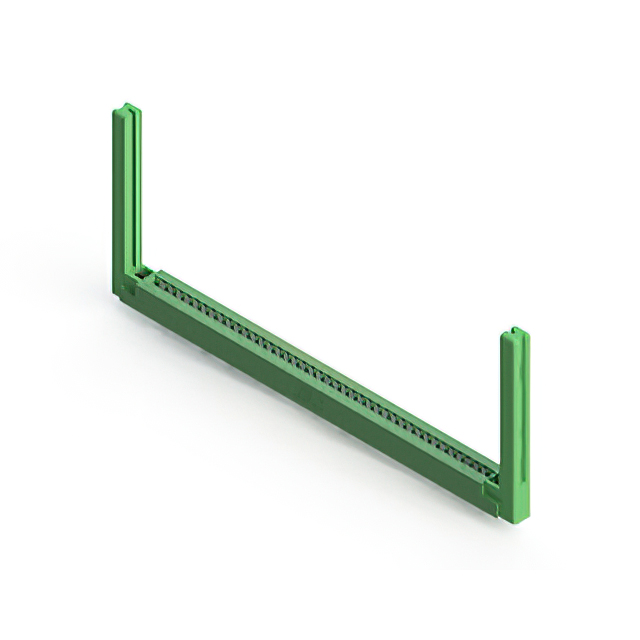

EDAC Inc. 316-040-400-158	1	Polyester Thermoplastic	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount	80	Dual	Non Specified - Dual Edge	Tin	Female	-40 C	105 ░C	Solder Eyelet(s)	3.96 mm	0.156 in			Card Guides

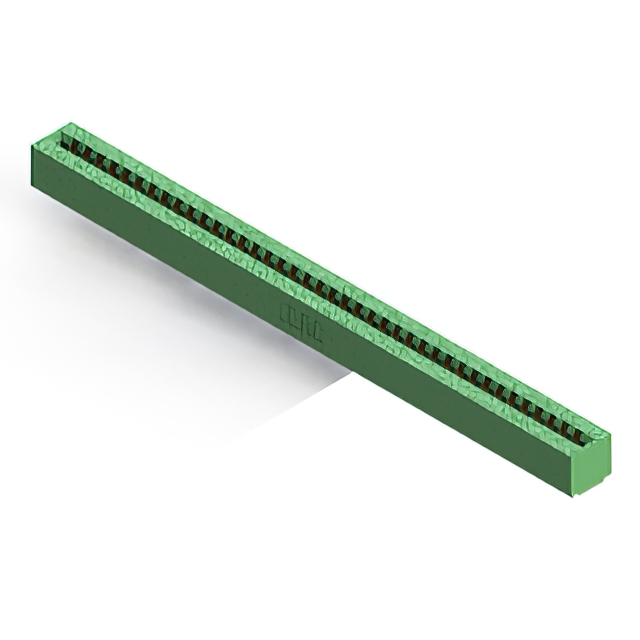

EDAC Inc. 316-040-520-101	1	Polyester Thermoplastic	Copper Alloy				2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Through Hole	40	Dual	Non Specified - Dual Edge	Gold	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	0.25 Ám	10 Áin

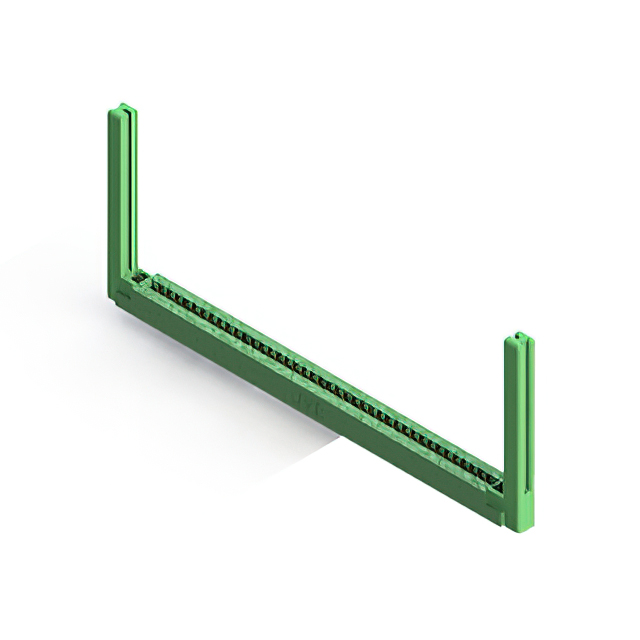

EDAC Inc. 316-040-521-158	1	Polyester Thermoplastic	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount Through Hole	80	Dual	Non Specified - Dual Edge	Gold	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Guides
EDAC Inc. 316-040-520-178	1	Polyester Thermoplastic	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Panel Mount Through Hole	80	Dual	Non Specified - Dual Edge	Gold	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in	0.25 Ám	10 Áin	Card Guides

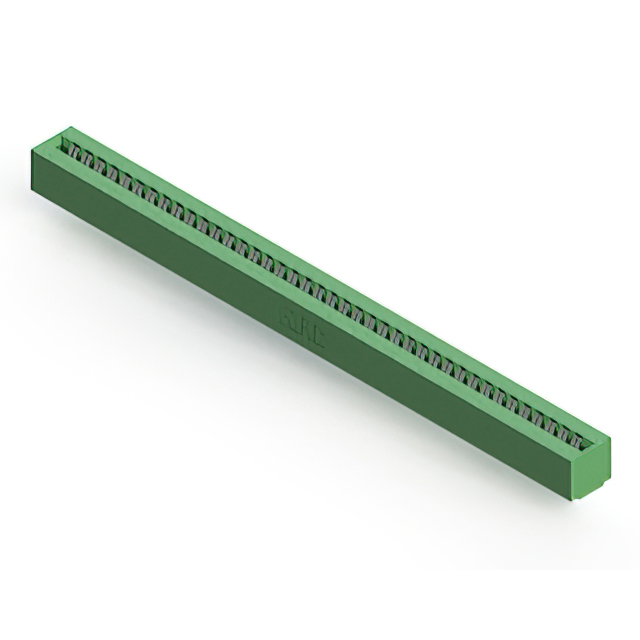

EDAC Inc. 316-040-421-101	1	Polyester Thermoplastic	Copper Alloy				2	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Green	Through Hole	80	Dual	Non Specified - Dual Edge	Tin	Female	-40 C	105 ░C	Solder	3.96 mm	0.156 in
