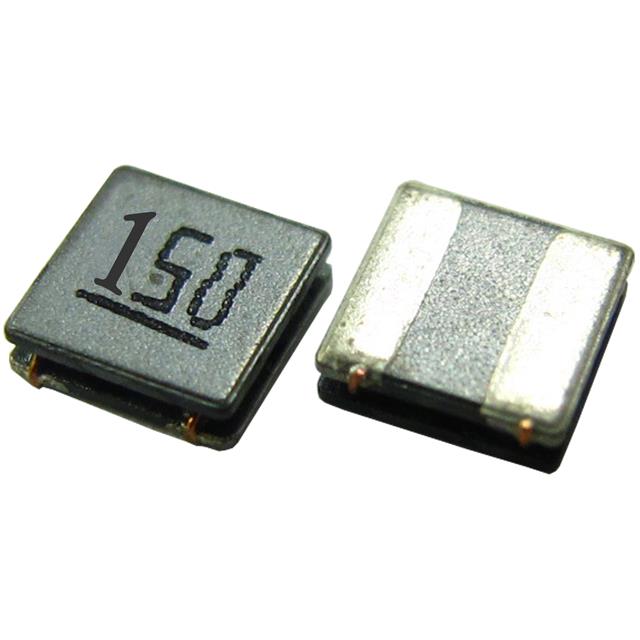

BWVH Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Closed Magnetic Circuit Type - Automatic Assembly

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Closed Magnetic Circuit Type - Automatic Assembly

Part	Mounting Type	DC Resistance (DCR)	Inductance Frequency - Test	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Supplier Device Package	Shielding	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Size / Dimension [y]
Pulse Electronics BWVH002520122R2M00	Surface Mount	80 mOhm	1 MHz	1.5 A	1.25 mm	0.049 in	2520 Metric	1008	1008	Shielded	2.2 µH	-55 C	125 °C	1.8 A	2.5 mm	0.079 in	0.098 in	2 mm	20 %
Pulse Electronics BWVH00252012R47T00	Surface Mount	27 mOhm	1 MHz	2.5 A	1.25 mm	0.049 in	2520 Metric	1008	1008	Shielded	470 nH	-55 C	125 °C	3.4 A	2.5 mm	0.079 in	0.098 in	2 mm	30 %
Pulse Electronics BWVH00201610R24MH1	Surface Mount	48 mOhm	1 MHz	2.1 A	1.02 mm	0.04 in		0806 (2016 Metric)	0806	Shielded	240 nH	-55 C	125 °C	3.3 A	2 mm	0.063 "	0.079 in	1.6 mm	20 %
Pulse Electronics BWVH002520124R7TH1	Surface Mount	235 mOhm	1 MHz	930 mA	1.25 mm	0.049 in	2520 Metric	1008	1008	Shielded	4.7 ÁH	-55 C	125 °C	1.1 A	2.5 mm	0.079 in	0.098 in	2 mm	30 %
Pulse Electronics BWVH002520121R5TH1	Surface Mount	88 mOhm	1 MHz	1.8 A	1.25 mm	0.049 in	2520 Metric	1008	1008	Shielded	1.5 µH	-55 C	125 °C	2.1 A	2.5 mm	0.079 in	0.098 in	2 mm	30 %
Pulse Electronics BWVH00252010R24MH1	Surface Mount	30 mOhm	1 MHz	3 A	1 mm	0.039 in	2520 Metric	1008	1008	Shielded	240 nH	-55 C	125 °C	4.2 A	2.5 mm	0.079 in	0.098 in	2 mm	20 %
Pulse Electronics BWVH00252012R68MH1	Surface Mount	31 mOhm	1 MHz	2.6 A	1.25 mm	0.049 in	2520 Metric	1008	1008	Shielded	0.68 µH	-55 C	125 °C	2.9 A	2.5 mm	0.079 in	0.098 in	2 mm	20 %
Pulse Electronics BWVH005956104R7M00	Surface Mount	165 mOhm	1 MHz	1.3 A	1 mm	0.039 in		Nonstandard		Shielded	4.7 ÁH	-55 C	125 °C	1.3 A	5.9 mm	0.22 in	0.232 "		20 %	5.6 mm
Pulse Electronics BWVH005956103R3M00	Surface Mount	135 mOhm	1 MHz	1.5 A	1 mm	0.039 in		Nonstandard		Shielded	3.3 µH	-55 C	125 °C	1.6 A	5.9 mm	0.22 in	0.232 "		20 %	5.6 mm
Pulse Electronics BWVH005956101R5M00	Surface Mount	86 mOhm	1 MHz	1.9 A	1 mm	0.039 in		Nonstandard		Shielded	1.5 µH	-55 C	125 °C	2.1 A	5.9 mm	0.22 in	0.232 "		20 %	5.6 mm
