076845 Series

Manufacturer: Molex

Catalog

CONN HEADER IMPACT 96POS PCB

Part	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Connector Style	Voltage Rating	Number of Columns	Contact Layout, Typical	Color	Contact Finish

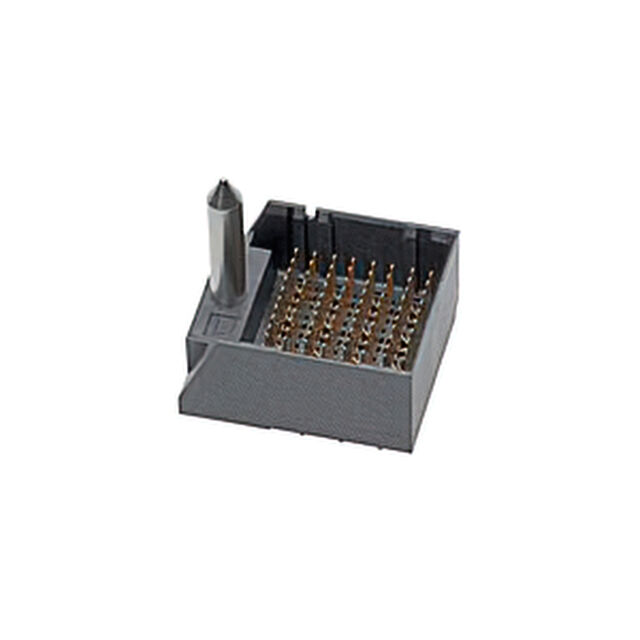

Molex 0768453805	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Guide Left Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768459808	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0		30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768451827	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768459608	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0		30 VDC	6	24 Differential Pairs	Black	Gold
Molex 0768451824	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768457808	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Guide Left Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768451825	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768457608	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Guide Left Impact	30 VDC	6	24 Differential Pairs	Black	Gold
Molex 0768457805	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	96	UL94 V-0	Guide Left Impact	30 VDC	8	32 Differential Pairs	Black	Gold
Molex 0768457108	Through Hole	Press-Fit	85 °C	-55 °C	12	0.76 Ám	30 Áin	Header Male Pins	All	120	UL94 V-0	Guide Left Impact	30 VDC	10	40 Differential Pairs	Black	Gold
