SMD Series

Manufacturer: YAGEO

Catalog

RESETTABLE FUSES - PPTC PPTC 9V 0.2A

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Type	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Time to Trip	Package / Case	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Size / Dimension [y]	Current - Hold (Ih) (Max)
YAGEO SMD0603B020TF	cUL TUV UL	85 °C	-40 C	550 mOhms	0.039 in	0.98 mm	200 mA	500 mA	Polymeric	3.5 Ohms	9 V	Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	40 A	60 ms	0603 (1608 Metric) Concave

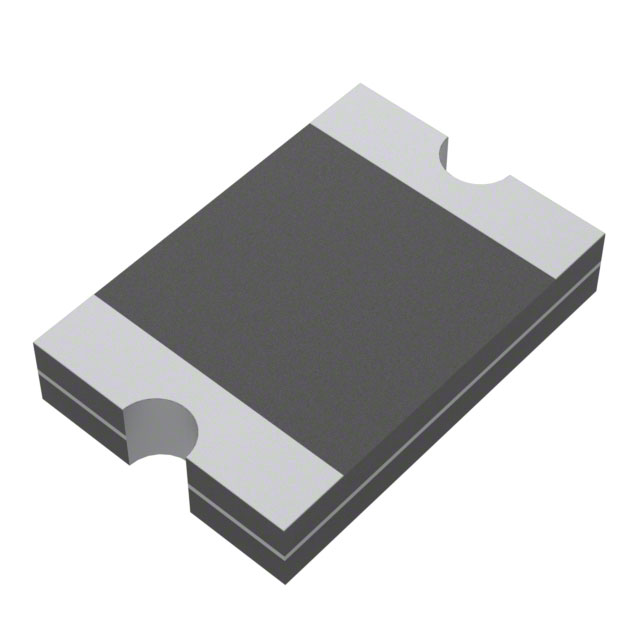

YAGEO SMD1812B050TF/30	cUL TUV UL	85 °C	-40 C	150 mOhms			500 mA	1 A	Polymeric	1 Ohms	30 V	Surface Mount	0.128 "	4.55 mm		0.179 in	100 A	150 ms	1812 (4532 Metric) Concave	0.083 "	2.1 mm	3.24 mm
YAGEO SMD1812B260TF/16		85 °C	-40 C	15 mOhms			2.6 A	5 A	Polymeric	50 mOhms	16 V	Surface Mount	0.128 "	4.55 mm		0.179 in	100 A	5 s	1812 (4532 Metric) Concave	0.083 "	2.1 mm	3.24 mm
YAGEO SMD1206B075TFT	cUL TUV UL	85 °C	-40 C	90 mOhms	0.057 "	1.45 mm	750 mA	1.5 A	Polymeric	350 mOhms	8 V	Surface Mount		0.126 in 3.2 mm			100 A	0.2 s	1206 (3216 Metric) Concave			0.065 in 1.65 mm
YAGEO SMD1812B160TF/16	cUL TUV UL	85 °C	-40 C	30 mOhms	0.071 in	1.8 mm		2.8 A	Polymeric	100 mOhms	16 V	Surface Mount	0.128 "	4.55 mm		0.179 in	100 A	800 ms	1812 (4532 Metric) Concave			3.24 mm	1.6 A
YAGEO SMD1812B075TF	cUL TUV UL	85 °C	-40 C	100 mOhms	0.061 in	1.55 mm	750 mA	1.5 A	Polymeric	450 mOhms	13.2 V	Surface Mount	0.128 "	4.55 mm		0.179 in	100 A	0.2 s	1812 (4532 Metric) Concave			3.24 mm

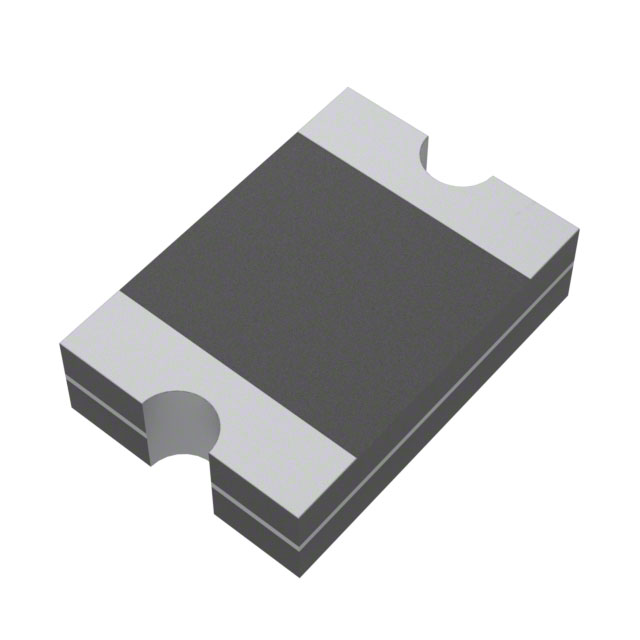

YAGEO SMD1210B110TFT		85 °C	-40 C	50 mOhms	0.033 in	0.85 mm	1.1 A	2.2 A	Polymeric	210 mOhms	8 V	Surface Mount	0.102 in	3.22 mm		0.127 in	100 A	0.3 s	1210 (3225 Metric) Concave			2.58 mm
YAGEO SMD2920B500TF/16	cUL TUV UL	85 °C	-40 C	5 mOhms	0.063 in	1.6 mm	5 A	10 A	Polymeric	31 mOhms	16 V	Surface Mount	0.202 in	7.36 mm		0.29 "	40 A	5 s	2920 (7351 Metric) Concave			5.12 mm
YAGEO SMD0603B010TF		85 °C	-40 C	900 mOhms	0.039 in	0.98 mm	100 mA	300 mA	Polymeric	6 Ohms	15 V	Surface Mount	0.031 in	1.6 mm	0.8 mm	0.063 "	40 A	1 s	0603 (1608 Metric) Concave
