PA5131 Series

Power Transformers 35W 13uH 200-700kHz 9-57V Forward

Catalog

Power Transformers 35W 13uH 200-700kHz 9-57V Forward

Part	Footprint [x]	Footprint [y]	Footprint [y]	Footprint [x]	Applications	Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Voltage - Primary [Max]	Voltage - Primary [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

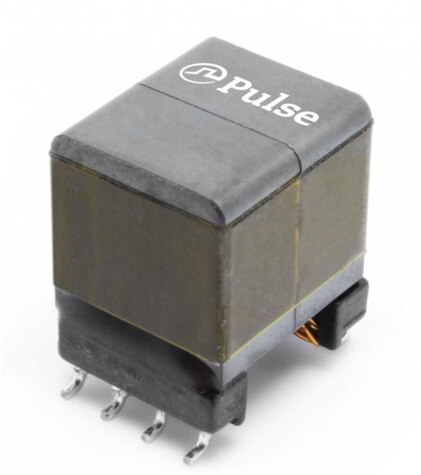

Pulse Electronics PA5131.004NLT	0.61 in	0.512 in	13 mm	15.5 mm	Forward Push-Pull Converters	Surface Mount	Wirewound	125 °C	-40 C	200 kHz	For DC/DC Converters	0.61 in	15.5 mm	13 mm	0.512 "	2250 VDC	57 V	9 V	0.61 in	15.5 mm

Power Transformers 35W 13uH 200-700kHz 9-57V Forward
