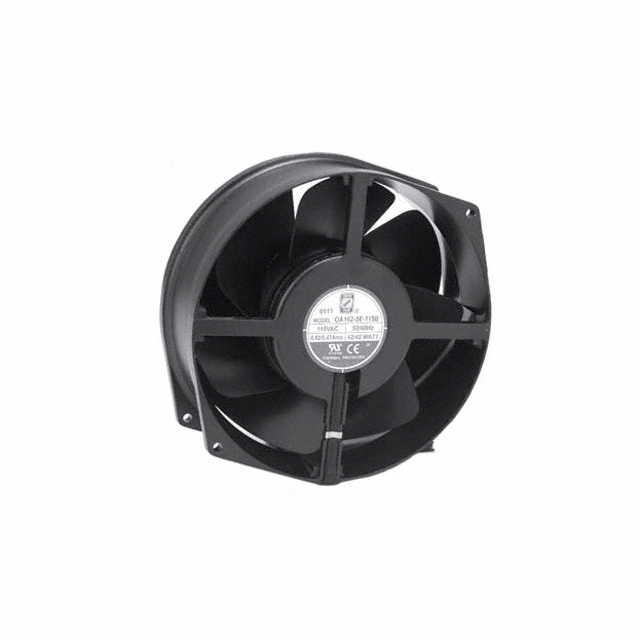

OA162 Series

Catalog

AC FAN AXIAL BALL BEARING 230V 160V TO 260V 195CFM/230CFM 49DB/53DB 172 X 55MM

Part	Lifetime @ Temp.	Material - Frame	Material - Blade [custom]	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Fan Type	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure	Approval Agency	Width	RPM	Weight	Weight	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Termination	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Ingress Protection
ORION FANS OA162-5E-230WB	40000 Hrs	Aluminum	Aluminum	160 VAC	260 VAC	Ball	Tubeaxial	53 dB	6.44 m³/min	230 CFM	156.9 Pa	0.63 in H2O	CE cURus TUV UR	55 mm	3250 RPM	1.1 kg	2.4 lbs	230 VAC	-40 C	70 °C	70 °C	-40 °C	42 W	Thermal Overload Protector (TOP)	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm
ORION FANS OA162AP-22-1WB1855	50000 Hrs	Aluminum				Ball	Tubeaxial	54 dB	5.88 m³/min	210 CFM	104.6 Pa	0.42 in H2O		55 mm	3200 RPM	1.2 kg	2.7 lbs	230 VAC					42 W	Thermal Overload Protector (TOP)	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm	Metal	IP55 - Dust Protected Water Resistant
ORION FANS OA162AP-11-1WB1855	50000 Hrs	Aluminum		100 VAC	120 VAC	Ball	Tubeaxial	54 dB	5.88 m³/min	210 CFM	104.6 Pa	0.42 in H2O		55 mm	3200 RPM	1.2 kg	2.7 lbs	115 VAC					42 W	Thermal Overload Protector (TOP)	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm	Metal	IP55 - Dust Protected Water Resistant
ORION FANS OA162-5E-115WB	40000 Hrs	Aluminum	Aluminum	103 VAC	126 VAC	Ball	Tubeaxial	53 dB	6.44 m³/min	230 CFM	156.9 Pa	0.63 in H2O	CE cURus TUV UR	55 mm	3250 RPM	1.1 kg	2.4 lbs	115 VAC	-40 C	70 °C	70 °C	-40 °C	42 W	Thermal Overload Protector (TOP)	2 Wire Leads	Rectangular/Rounded	150 mm	172 mm
