ERNI SMC Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CONN SOCKET STRIP F 68 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

...

Part	Insulation Height	Insulation Height	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Number of Positions	Insulation Color	Termination	Contact Finish - Mating	Features	Contact Type	Fastening Type	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Style	Contact Material	Contact Shape	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Color	Cable Pitch	Cable Pitch	Row Spacing [custom]	Row Spacing [custom]	Cable Termination	Board-Side Pitch	Board-Side Pitch	Contact Finish	Row Spacing	Row Spacing	Pitch	Pitch	Convert From (Adapter End)	Convert To (Adapter End)	Insulation Height
TE Connectivity AMP Connectors 154808-E	6.25 mm	0.246 in	UL94 V-0	0.05 in	1.27 mm	1.7 A	68 positions	Black	Solder	Gold	Board Guide Pick and Place Solder Retention	Female Socket	Push-Pull	All	Surface Mount	2	Receptacle	Tin	1.27 mm	0.05 in	-55 C	125 °C
TE Connectivity AMP Connectors 474356-E			UL94 V-0	0.05 in	1.27 mm		50	Black	Solder	Gold	Board Guide Solder Retention	Male Pin	Push-Pull	All	Through Hole	2	Header	Tin	1.27 mm	0.05 in	-40 C	125 °C	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	Rectangular	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 064002-E	8.2 mm	0.323 in	UL94 V-0	0.05 in	1.27 mm	1.7 A	12	Black	Press-Fit	Gold		Male Pin	Push-Pull	All	Through Hole	2	Header	Tin	1.27 mm	0.05 in	-55 C	125 °C	Shrouded - 4 Wall		Copper Alloy	Square	Liquid Crystal Polymer (LCP)	10 mm	0.394 in	0.11 in	2.79 mm	4 mm	0.157 in

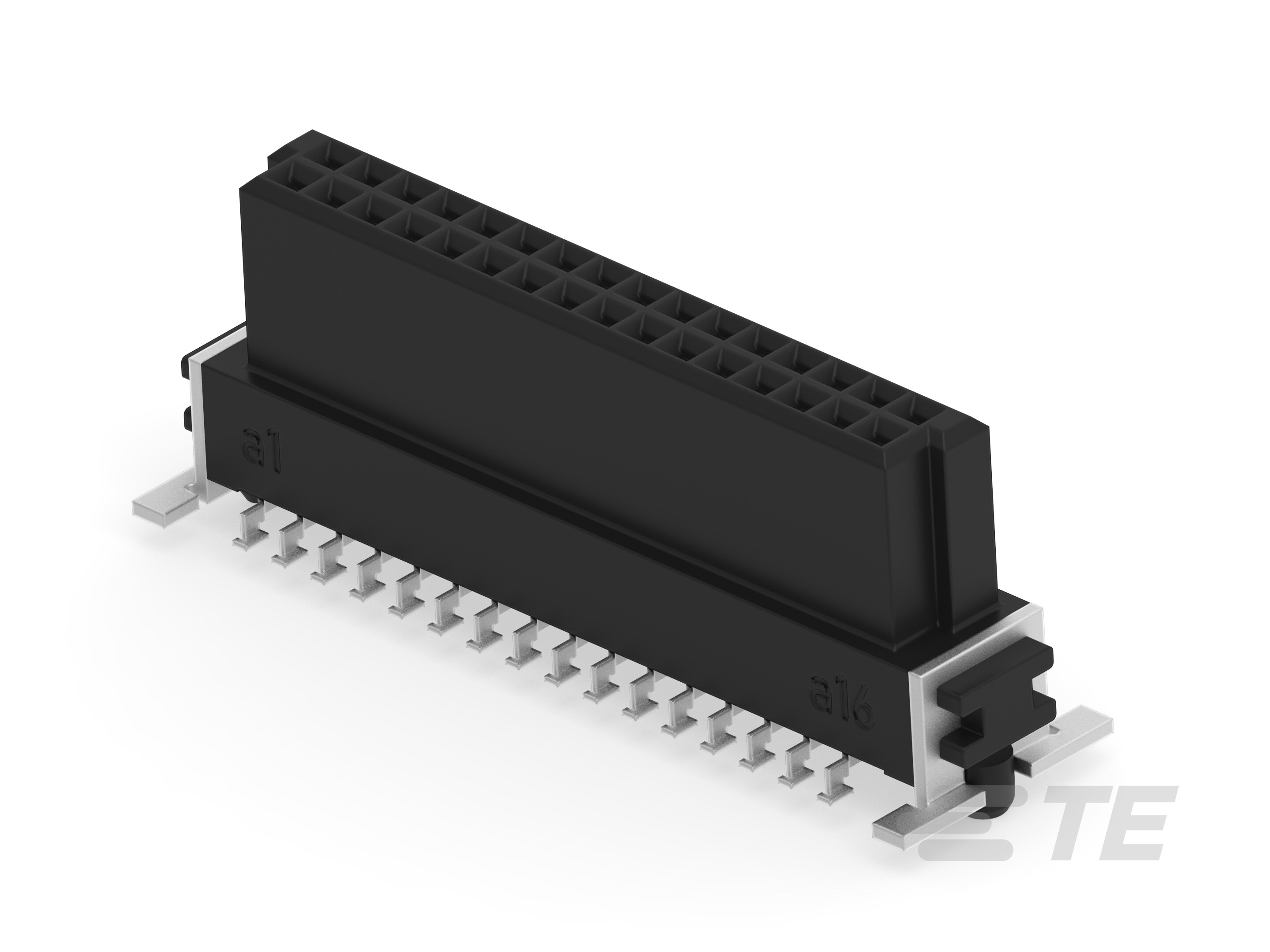

TE Connectivity AMP Connectors 354064-E	9.05 mm	0.356 "	UL94 V-0	0.05 in	1.27 mm	1.7 A		Black	Solder	Gold	Board Guide Pick and Place Solder Retention	Female Socket	Push-Pull	All	Surface Mount	2	Receptacle	Tin	1.27 mm	0.05 in	-55 C	125 °C
TE Connectivity AMP Connectors 354080-E			UL94 V-0	0.05 in	1.27 mm	1.7 A		Black	Solder	Gold	Board Guide Solder Retention	Female Socket	Push-Pull	All	Right Angle Surface Mount	2	Receptacle	Tin	1.27 mm	0.05 in	-55 C	125 °C												0.152 in	3.85 mm

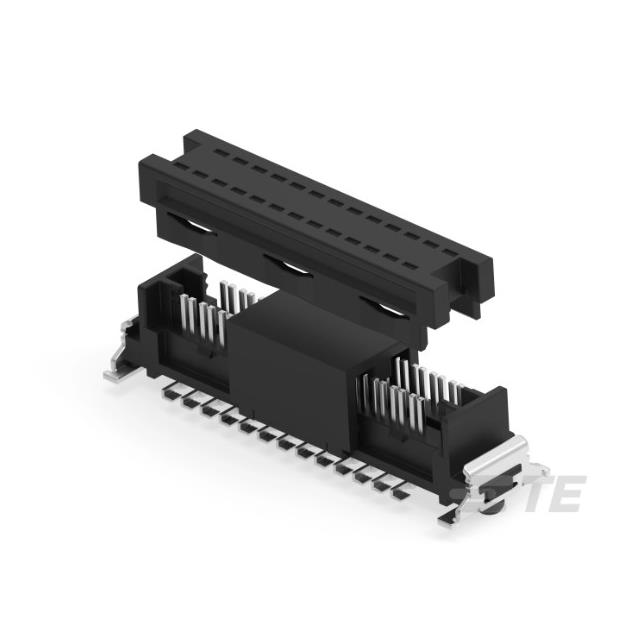

TE Connectivity AMP Connectors 244629-E							26				Board Guide			All	Surface Mount	2	Header																			Black	1.27 mm	0.05 in	0.085 in	2.15 mm	IDC	0.05 in	1.27 mm	Tin
TE Connectivity AMP Connectors 364717-E							68 positions								Free Hanging (In-Line)	2																													1.27 mm	0.05 "	0.05 in	1.27 mm	Male Pins Plug	Plug Male Pins
TE Connectivity AMP Connectors 234210-E	0.388 in		UL94 V-0	0.05 in	1.27 mm	1.7 A	80	Black	Solder	Gold	Board Guide Pick and Place	Male Pin	Latch Holder	All	Surface Mount	2	Header	Tin	1.27 mm	0.05 in	-55 C	125 °C	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	Square	Liquid Crystal Polymer (LCP)					4 mm	0.157 in																		9.86 mm
TE Connectivity AMP Connectors 364095-E							12								Free Hanging (In-Line)	2																													1.27 mm	0.05 "	0.05 in	1.27 mm	Male Pins Plug	Plug Male Pins
TE Connectivity AMP Connectors 244858-E	8.25 mm	0.325 in	UL94 V-0	0.05 in	1.27 mm	1.7 A	80	Black	Solder	Gold	Board Guide Pick and Place Solder Retention	Male Pin	Push-Pull	All	Surface Mount	2	Header	Tin	1.27 mm	0.05 in	-55 C	125 °C	Shrouded - 4 Wall		Copper Alloy	Square	Liquid Crystal Polymer (LCP)					4 mm	0.157 in
