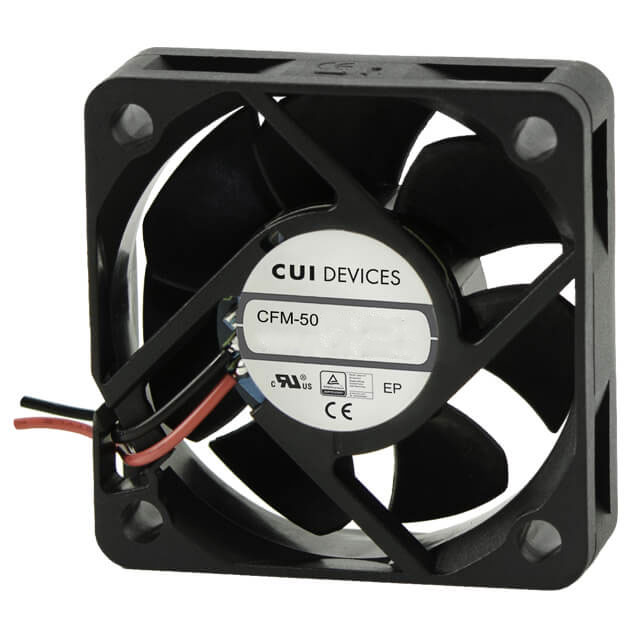

CFM-5015 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FAN AXIAL 50X15MM 12VDC WIRE

Part	Width [y]	Power (Watts)	RPM	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Features	Approval Agency	Voltage - Rated	Material - Blade	Fan Type	Air Flow	Air Flow	Noise
Same Sky (Formerly CUI Devices) CFM-5015V-150-290-11	15 mm	0.65 W	5000 RPM	4.5 V	13.8 VDC	33.11 g	0.073 lb	50 mm	50 mm	42.3 Pa	0.17 in H2O	0.054 A	3 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart Locked Rotor Sensor	CE cURus TUV	12 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.364 mł/min	13 CFM	29 dB(A)

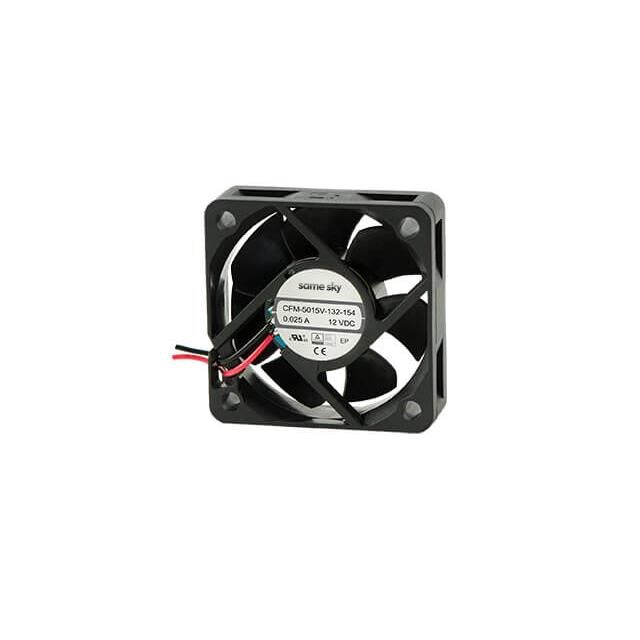

Same Sky (Formerly CUI Devices) CFM-5015V-132-154-20	15 mm	0.4 W	3200 RPM			33.11 g	0.073 lb	50 mm	50 mm	17.4 Pa	0.07 in H2O		3 Wire Leads	70 °C	-10 °C		Auto Restart Speed Sensor (Tach)	CE cURus TUV	12 VDC		Tubeaxial	0.216 m³/min	7.7 CFM	15.4 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-161-330-11	15 mm	920 mW	6100 RPM			33.11 g	0.073 lb	50 mm	50 mm	57.3 Pa	0.23 in H2O		3 Wire Leads	70 °C	-10 °C		Auto Restart Locked Rotor Sensor	CE cURus TUV	12 VDC		Tubeaxial	0.476 m³/min	17 CFM	33 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-150-290-11	15 mm	0.65 W	5000 RPM			33.11 g	0.073 lb	50 mm	50 mm	42.3 Pa	0.17 in H2O		3 Wire Leads	70 °C	-10 °C		Auto Restart Locked Rotor Sensor	CE cURus TUV	12 VDC		Tubeaxial	0.364 mł/min	13 CFM	29 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-258-330	15 mm	1.23 W	6100 RPM			33.11 g	0.073 lb	50 mm	50 mm	57.3 Pa	0.23 in H2O	0.051 A	2 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart	CE cURus TUV	24 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.476 m³/min	17 CFM	33 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-258-330-11	15 mm	1.23 W	6100 RPM			37.65 g	0.083 lb	50 mm	50 mm	57.3 Pa	0.23 in H2O		3 Wire Leads	70 °C	-10 °C		Auto Restart Locked Rotor Sensor	CE cURus TUV	24 VDC		Tubeaxial	0.476 m³/min	17 CFM	33 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-138-201	15 mm	0.4 W	3800 RPM	4.5 V	13.8 VDC	33.11 g	0.073 lb	50 mm	50 mm	29.9 Pa	0.12 in H2O	0.042 A	2 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart	CE cURus TUV	12 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.286 mł/min	10.2 CFM	20.1 dB
Same Sky (Formerly CUI Devices) CFM-5015V-258-330-11	15 mm	1.23 W	6100 RPM			37.65 g	0.083 lb	50 mm	50 mm	57.3 Pa	0.23 in H2O	0.051 A	3 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart Locked Rotor Sensor	CE cURus TUV	24 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.476 m³/min	17 CFM	33 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-150-290-20	15 mm	0.65 W	5000 RPM	4.5 V	13.8 VDC	33.11 g	0.073 lb	50 mm	50 mm	42.3 Pa	0.17 in H2O	0.054 A	3 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart Speed Sensor (Tach)	CE cURus TUV	12 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.364 mł/min	13 CFM	29 dB(A)
Same Sky (Formerly CUI Devices) CFM-5015V-161-330-11	15 mm	920 mW	6100 RPM	4.5 V	13.8 VDC	33.11 g	0.073 lb	50 mm	50 mm	57.3 Pa	0.23 in H2O	0.083 A	3 Wire Leads	70 °C	-10 °C	70000 Hrs	Auto Restart Locked Rotor Sensor	CE cURus TUV	12 VDC	Polybutylene Terephthalate (PBT)	Tubeaxial	0.476 m³/min	17 CFM	33 dB(A)
