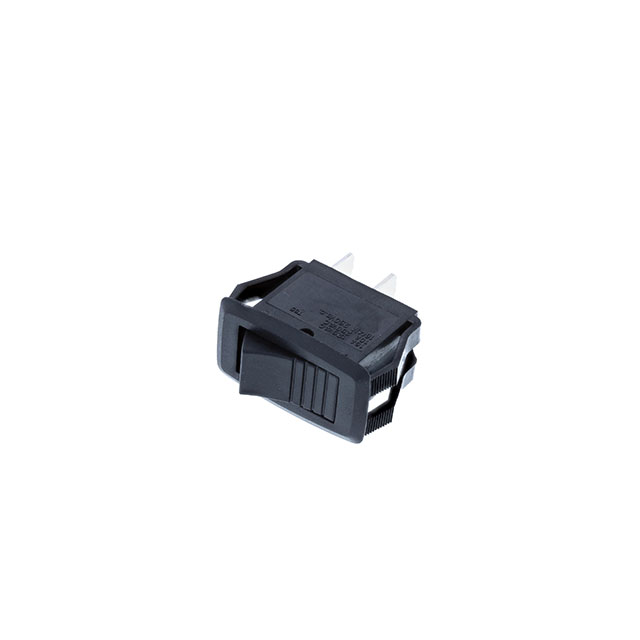

RG3-1A Series
Manufacturer: Switch Components
Beta
⌘K
VAC MID-SIZE, SPST OFF-ON
| Part | Panel Cutout Shape | Panel Cutout Width | Panel Cutout Length | Actuator Type | Ingress Protection | Approval Agency | Current Rating | Mounting Type | Switch Function | Operating Temperature (Max) | Operating Temperature (Min) | Circuit | Quick Connect Size (0.250") | Termination Style | Actuator Marking | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | Rectangular | 13.8 mm | 27.6 mm | Concave (Curved) | IP40 | CSA cURus ENEC | 16 A | Panel Mount Snap-In | On-Off | 85 °C | -25 °C | SPST | 0.25 in | Quick Connect | No Marking | Black |
