TR9CE7080 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 85W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Polarization	Approval Agency	No Load Power Consumption	Region Utilized	Standard Number	Applications	Cord Length	Cord Length	Form	Efficiency	Input Type	Voltage - Output	Current - Output (Max) [Max]	Operating Temperature [Max]	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Output Connector [x]	Output Connector [diameter]	Output Connector

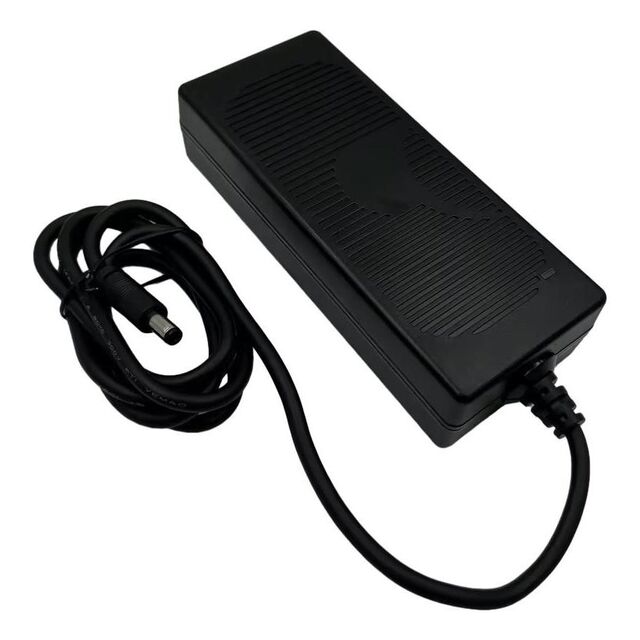

GlobTek, Inc. TR9CE7080CPCIMR6BLPS	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	Positive Center	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	150 mW	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	Desktop (Class I)	Level VI	Cord (Sold Separately)	12 V	7.08 A	50 °C	85 W	264 VAC	90 VAC	IEC 320-C14	11 mm	2.1 mm 5.5 mm	Barrel Plug

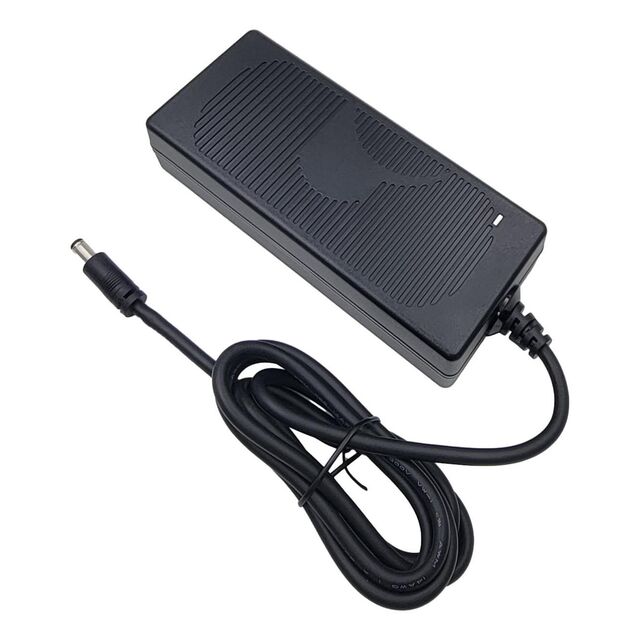

GlobTek, Inc. TR9CE7080LPCIMR6BLPS	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	Positive Center	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	150 mW	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	Desktop (Class I)	Level VI	Cord (Sold Separately)	12 V	7.08 A	50 °C	85 W	264 VAC	90 VAC	IEC 320-C14	11 mm	2.5 mm 5.5 mm	Barrel Plug
GlobTek, Inc. TR9CE7080YL4SIMR6LPS	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm		CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI	150 mW	International		Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	Desktop (Class I)	CoC Tier 2 Level VI	Cord (Sold Separately)	12 V	7.08 A	50 °C	85 W	264 VAC	90 VAC	IEC 320-C14			Power DIN 4 Pin
