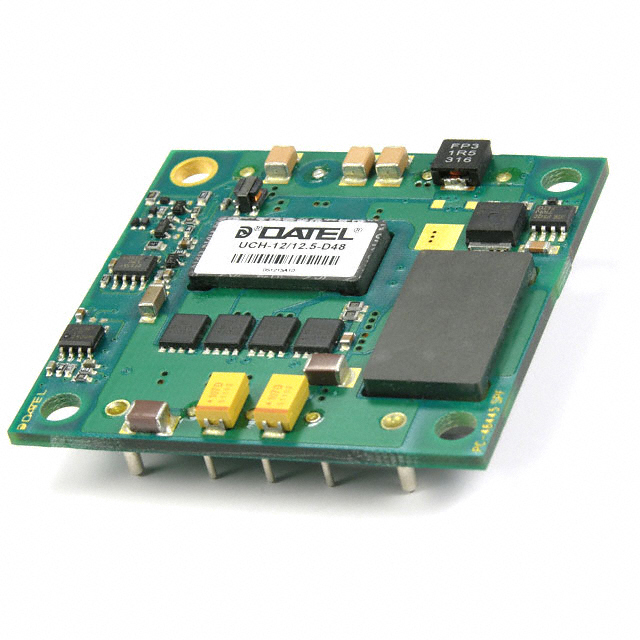

UCH-12 Series

Catalog

DC DC CONVERTER 12V 50W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Mounting Type	Power (Watts)	Voltage - Output 1	Type	Voltage - Input (Min) [Min]

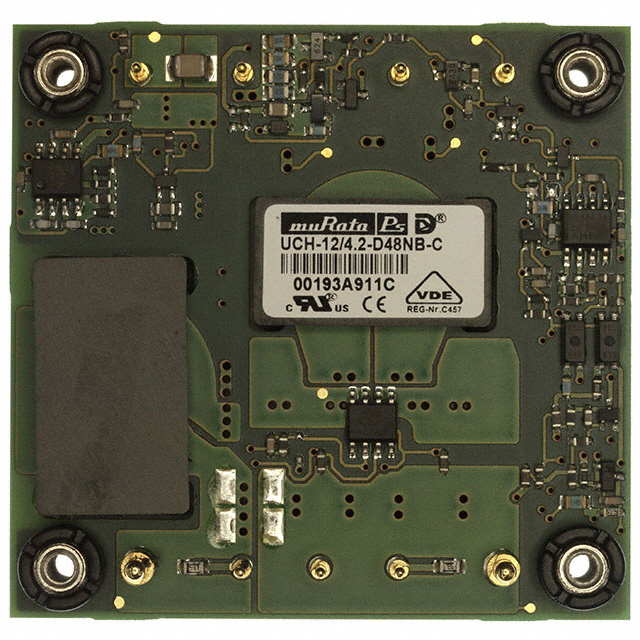

Murata Electronics UCH-12/4.2-D48NB-C	61 mm	2.3 in	10.2 mm	2.4 in	0.4 "	58.4 mm	1	ITE (Commercial)	75 V	85 °C	-40 C	9-DIP Module 1/2 Brick	90.5 %	4.2 A	2250 VDC	Through Hole	50 W	12 V	Isolated Module	36 V
Murata Electronics UCH-12/12.5-D48N-C	61 mm	2.3 in	10.2 mm	2.4 in	0.4 "	58.4 mm	1	ITE (Commercial)	75 V	85 °C	-40 C	9-DIP Module 1/2 Brick	92.6 %	12.5 A	2250 VDC	Through Hole	150 W	12 V	Isolated Module	36 V
