TA5FSH Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

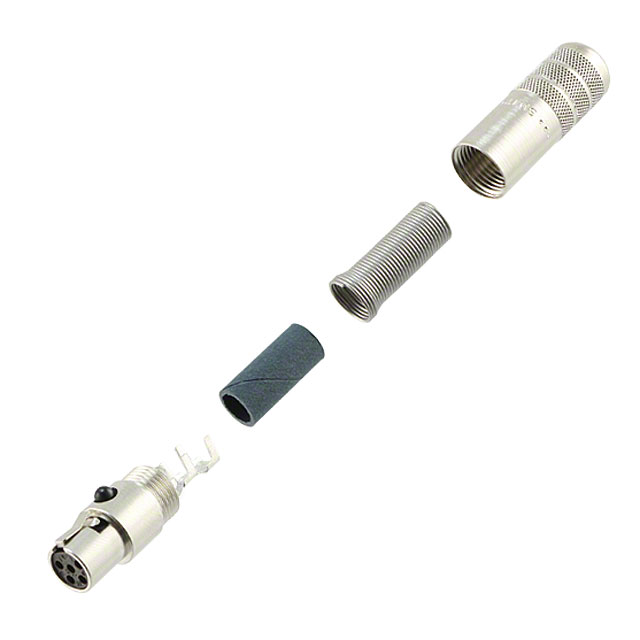

SHIELDED MINI XLR, 5 CONTACTS, FEMALE, SILVER PLATED CONTACTS, WITH FLEX RELIEF
| Part | Backshell Material, Plating | Contact Material | Insert Material | Applications | Features | Termination | Orientation | Shell Size - Insert | Shell Finish | Current Rating (Amps) | Mounting Type | Color | Primary Material | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Material Flammability Rating | Connector Type | Number of Positions | Voltage Rating | Contact Finish - Mating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Copper Alloy Nickel | Copper Alloy | Thermoplastic | Audio Medical | Backshell Cable Clamp Ground Strain Relief | Solder | Keyed | Mini XLR | Nickel | 4 A | Free Hanging (In-Line) | Silver | Metal | Shielded | -55 C | 85 °C | Latch Lock | UL94 V-0 | Plug Female Sockets | 5 | 125 VAC | Silver | Copper Alloy |
