V1633 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

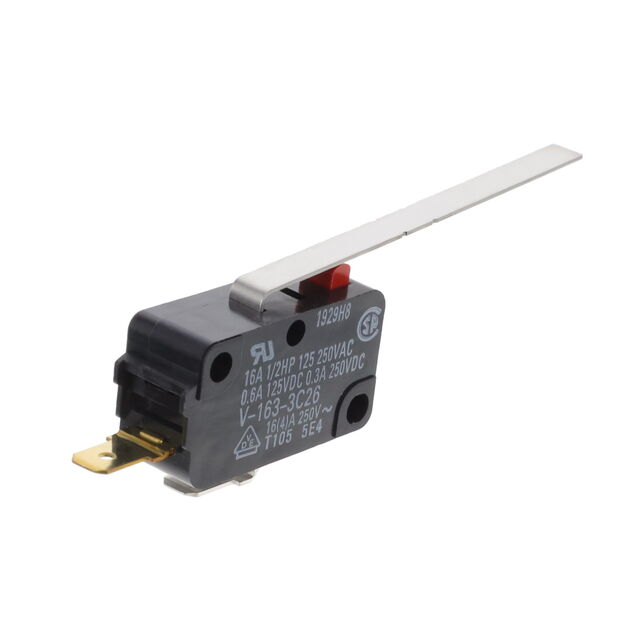

SWITCH SNAP ACT SPST-NO 16A 250V
| Part | Electrical Life | Pretravel | Pretravel | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Operating Position | Operating Position | Release Force | Overtravel [custom] | Overtravel [custom] | Ingress Protection | Operating Force | Current Rating (Amps) | Termination Style | Actuator Type | Mechanical Life | Circuit | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 100000 Cycles | 0.354 in | 9 mm | -25 °C | 80 °C | Chassis Mount | 0.6 in | 15.2 mm | 12 gf | 0.079 " | 2 mm | IP40 | 130 gf | 16 A 600 mA | Quick Connect | Lever Straight | 50000000 Cycles | SPST-NO | 250 V | Off-Mom | 125 VDC | 0.11 in | 2.8 mm |
