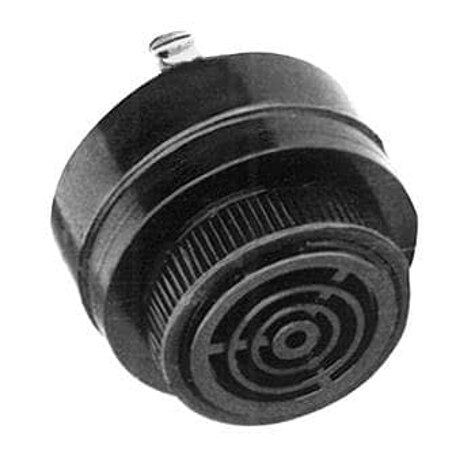

SCH Series
Piezo Buzzers & Audio Indicators CHIME, 6-16VDC MED, CLASS I DIV II
Manufacturer: Mallory Sonalert Products Inc.
Catalog
Piezo Buzzers & Audio Indicators CHIME, 6-16VDC MED, CLASS I DIV II
Beta
⌘K
Piezo Buzzers & Audio Indicators CHIME, 6-16VDC MED, CLASS I DIV II
Piezo Buzzers & Audio Indicators CHIME, 6-16VDC MED, CLASS I DIV II
Piezo Buzzers & Audio Indicators CHIME, 6-16VDC MED, CLASS I DIV II
| Part | Termination | Termination | Termination | Driver Circuitry | Duration [Max] | Duration [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Sound Pressure Level (SPL) | Voltage Range [Max] | Voltage Range [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency | Port Location | Mounting Type | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Supply [Max] | Current - Supply [Min] | Operating Mode | Ingress Protection | Approval Agency | Technology | Current - Supply [Max] [x] | Current - Supply [Min] [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mallory Sonalert Products Inc. | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | 10 PPS | 2 PPS | 33.77 mm | 1.33 in | 91 dB | 16 V | 6 VDC | 42.85 mm | 1.687 in | 2.9 kHz | Top | Panel Mount | DC | -30 ░C | 65 °C | 22 mA | 6 mA | Fast Pulse | 12 4X IP66 NEMA 3R | CSA cUL UL | Piezo | ||
 Mallory Sonalert Products Inc. | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | 33.77 mm | 1.33 in | 93 dB | 7 V | 3 V | 42.85 mm | 1.687 in | 2.9 kHz | Top | Panel Mount | DC | -30 ░C | 65 °C | 12 mA | 4 mA | Single Tone | 12 4X IP66 NEMA 3R | CSA cUL UL | Piezo | ||||
Mallory Sonalert Products Inc. | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | 10 PPS | 2 PPS | 33.77 mm | 1.33 in | 90 dB | 120 V | 30 VDC | 42.85 mm | 1.687 in | 2.9 kHz | Top | Panel Mount | -30 ░C | 65 °C | Fast Pulse | 12 4X IP66 NEMA 3R | CSA cUL UL | Piezo | 24 mA | 6 mA | |||
 Mallory Sonalert Products Inc. | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | 10 PPS | 2 PPS | 33.77 mm | 1.33 in | 88 dB | 28 V | 6 VDC | 42.85 mm | 1.687 in | 2.9 kHz | Top | Panel Mount | -30 ░C | 65 °C | Fast Pulse | 12 4X IP66 NEMA 3R | CSA cUL UL | Piezo | 30 mA | 4 mA | |||
 Mallory Sonalert Products Inc. | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Indicator Internally Driven | 33.77 mm | 1.33 in | 75 dB | 16 V | 6 VDC | 42.85 mm | 1.687 in | 2.9 kHz | Top | Panel Mount | DC | -30 ░C | 65 °C | 23 mA | 6 mA | Chime | 12 4X IP66 NEMA 3R | CSA cUL UL | Piezo |
