149009 Series

Catalog

CONN HEADER VERT 100POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Contact Type	Number of Positions	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Shrouding	Insulation Color	Voltage Rating	Features	Termination	Contact Material	Contact Shape	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]

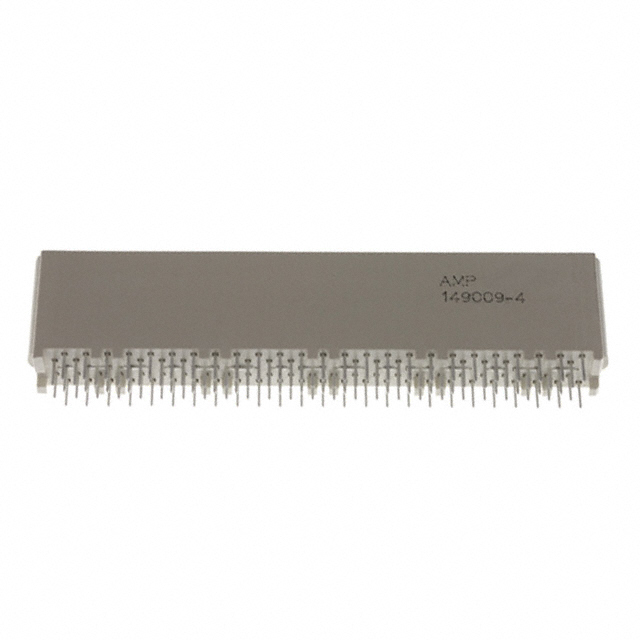

TE Connectivity AMP Connectors 149009-4	2.54 µm	100 µin	18.75 mm	Male Pin	100	Push-Pull	Gold	Varies by Wire Gauge	Shrouded - 4 Wall	Natural	30 VAC	Ground Bus (Plane)	Solder	Phosphor Bronze	Square	Tin-Lead	1.27 mm	0.05 in	0.76 Ám	30 Áin	All	Through Hole	16.46 mm	0.648 in	Thermoplastic	0.1 in	2.54 mm	Plug	2	-65 ░C	125 °C
