MDSTBA Series
Manufacturer: Phoenix Contact
Beta
⌘K

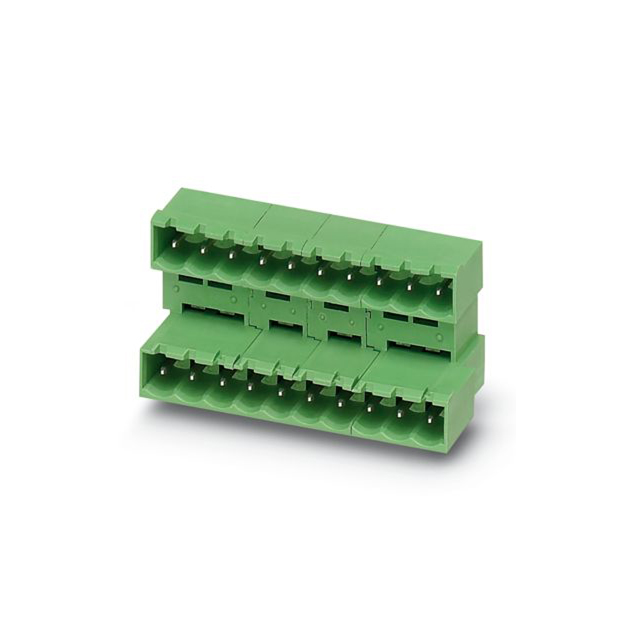

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH THROUGH HOLE HEADER
| Part | Insulation Height | Insulation Height | Material Flammability Rating | Housing Material | Number of Positions | Mounting Type | Features | Header Orientation | Number of Levels | Color | Positions Per Level | Current - IEC | Pitch | Pitch | Voltage - IEC | Type | Termination Style | Voltage - UL | Contact Mating Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 0.933 " | 23.7 mm | UL94 V-0 | Polybutylene Terephthalate (PBT) | 24 | Through Hole | Side Stacking | 90° Right Angle | 2 | Green | 12 | 10 A | 5.08 mm | 0.2 in | 400 V | Header Male Pins Shrouded (4 Side) | Solder | 300 V | Tin |
