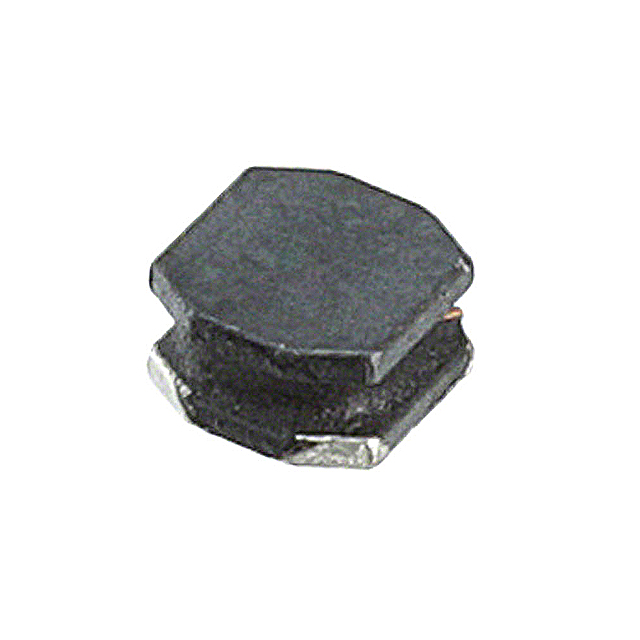

VLS-E Series

Catalog

POWER INDUCTORS - SMD RECOMMENDED ALT 810-VLS252010CX6R8M1

Part	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Mounting Type	Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package	Shielding	Material - Core	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TDK Corporation VLS252010ET-6R8M	0.68 A	0.039 in	1 mm	6.8 µH	0.68 A	532 mOhm	1 MHz	2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008	Surface Mount	Drum Core Wirewound	20 %	-40 C	105 ░C	2520 Metric	1008	Shielded	Ferrite
TDK Corporation VLS252012ET-2R2M	1.3 A	0.039 in	1 mm	2.2 µH	1.55 A		1 MHz	2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008	Surface Mount	Drum Core Wirewound	20 %	-40 C	105 ░C	2520 Metric	1008	Shielded	Ferrite	154 mOhm
TDK Corporation VLS2010ET-150M	400 mA	0.039 in	1 mm	15 µH	400 mA	1.476 Ohm	1 MHz	2 mm	0.079 in	0.079 in	2 mm		Nonstandard	Surface Mount	Wirewound	20 %	-40 C	105 ░C			Shielded
TDK Corporation VLS3010ET-2R2M	1.2 A	0.039 in	1 mm	2.2 µH	1.2 A		1 MHz	3 mm	0.118 in	0.118 "	3 mm		Nonstandard	Surface Mount	Wirewound	20 %	-40 C	105 ░C			Shielded		116 mOhm
TDK Corporation VLS201612ET-6R8M	580 mA			6.8 µH	580 mA	708 mOhm	1 MHz	2 mm	0.063 "	0.079 in	1.6 mm		Nonstandard	Surface Mount	Drum Core Wirewound	20 %	-40 C	105 ░C			Shielded	Ferrite		1.2 mm	0.047 "
TDK Corporation VLS3010ET-100M	0.56 A	0.039 in	1 mm	10 µH	0.56 A	468 mOhm	1 MHz	3 mm	0.118 in	0.118 "	3 mm		Nonstandard	Surface Mount	Wirewound	20 %	-40 C	105 ░C			Shielded
TDK Corporation VLS2012ET-1R0N	1.45 A			1 µH	1.45 A	86 mOhm	1 MHz	2 mm	0.079 in	0.079 in	2 mm		Nonstandard	Surface Mount	Wirewound	30 %	-40 C	105 ░C			Shielded			1.2 mm	0.047 "
TDK Corporation VLS4012ET-330M	470 mA			33 µH	470 mA	804 mOhm	1 MHz	4 mm	0.157 "	0.157 in	4 mm		Nonstandard	Surface Mount	Drum Core Wirewound	20 %	-40 C	105 ░C			Shielded	Ferrite		1.2 mm	0.047 "
TDK Corporation VLS252010ET-R47N	2.5 A	0.039 in	1 mm	470 nH	2.5 A	46 mOhm	1 MHz	2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008	Surface Mount	Drum Core Wirewound	30 %	-40 C	105 ░C	2520 Metric	1008	Shielded	Ferrite
TDK Corporation VLS201610ET-1R0N	1.35 A			1 µH	1.35 A	119 mOhm	1 MHz	2 mm	0.063 "	0.079 in	1.6 mm		Nonstandard	Surface Mount	Drum Core Wirewound	30 %	-40 C	105 ░C			Shielded	Ferrite		0.037 in		0.95 mm
