BWVT Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPE - AUTOMATIC ASSEMBLY

Part	Mounting Type	Shielding	Current - Saturation (Isat)	Tolerance	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Package / Case	Material - Core	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	DC Resistance (DCR)	Package / Case	Height - Seated (Max) [Max] [z]	Supplier Device Package
Pulse Electronics BWVT008080403R3M00	Surface Mount	Shielded	7.2 A	20 %	3131	-55 C	125 °C	100 kHz	3131 (8080 Metric)	Ferrite	4.2 mm	0.165 "	5.31 A	8 mm	0.315 in	8 mm	0.315 in	3.3 µH
Pulse Electronics BWVT004040122R2M00	Surface Mount	Shielded	1.71 A	20 %	1616	-55 C	125 °C	1 MHz	1616 (4040 Metric)	Ferrite	1.3 mm	0.051 in	2.07 A	4 mm	0.157 in	4 mm	0.157 "	2.2 µH	60 mOhm
Pulse Electronics BWVT003030121R0T00	Surface Mount	Shielded	2.79 A	30 %	1212	-55 C	125 °C	1 MHz	1212	Ferrite		0.047 "	2.7 A	3 mm	0.118 "	3 mm	0.118 in	1 µH	60 mOhm	3030 Metric	1.2 mm

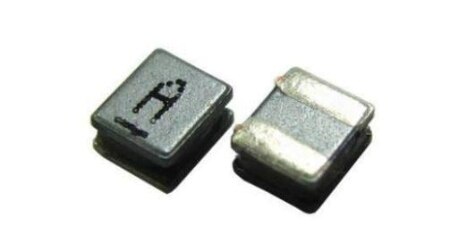

Pulse Electronics BWVT006060201R0T00	Surface Mount	Shielded	5.76 A	30 %		-55 C	125 °C	100 kHz	2424 (6060 Metric)	Ferrite		0.087 in	3.78 A	6 mm	0.236 in	6 mm	0.236 "	1 µH	19 mOhm		2.2 mm	2424
Pulse Electronics BWVT00404012150M00	Surface Mount	Shielded	700 mA	20 %	1616	-55 C	125 °C	1 MHz	1616 (4040 Metric)	Ferrite	1.3 mm	0.051 in	900 mA	4 mm	0.157 in	4 mm	0.157 "	15 µH	260 mOhm
Pulse Electronics BWVT008080402R2M00	Surface Mount	Shielded	8.73 A	20 %	3131	-55 C	125 °C	100 kHz	3131 (8080 Metric)	Ferrite	4.2 mm	0.165 "	6.48 A	8 mm	0.315 in	8 mm	0.315 in	2.2 µH	12 mOhm
Pulse Electronics BWVT00404026R47M00	Surface Mount	Shielded	6.48 A	20 %	1616	-55 C	125 °C	100 kHz	1616 (4040 Metric)	Ferrite			4.32 A	4 mm	0.157 in	4 mm	0.157 "	470 nH	24 mOhm
