109D Series

Catalog

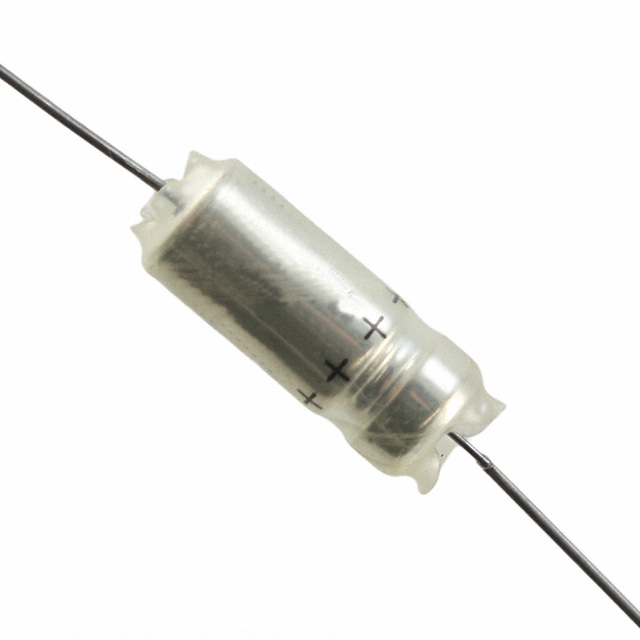

TANTALUM CAPACITORS - WET WET TANTALUM SILVER CASE, SINTERED ANODE TANTALEX CAPACITORS FOR OPERATION TO +125C, ELASTOMER-SEALED

Part	Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Voltage - Rated	Manufacturer Size Code	Mounting Type	ESR (Equivalent Series Resistance)	Tolerance	Capacitance	Size / Dimension Length	Size / Dimension Diameter	Package / Case	Lifetime
Vishay Dale 109D277X9006F2	Elastomer Sealed Hermetically Sealed	125 °C	-55 °C	Wet Tantalum	6 VDC	F	Through Hole	4 Ohm	10 %	270 µF	0.796 in	0.312 in	Axial
Vishay Dale 109D476X9010C2	Elastomer Sealed	125 °C	-55 °C	Wet Tantalum	10 V	C	Through Hole	5 Ohm	10 %	47 µF	0.608 in	0.219 in	Axial
Vishay Dale 109D476X9075F2	Elastomer Sealed Hermetically Sealed	125 °C	-55 °C	Wet Tantalum	75 V	F	Through Hole	3 Ohm	10 %	47 µF	0.796 in	0.312 in	Axial
Vishay Dale 109D805X9030C2	Elastomer Sealed	125 °C	-55 °C	Wet Tantalum	30 VAC	C	Through Hole	7.5 Ohm	10 %	8 µF	0.608 in	0.219 in	Axial

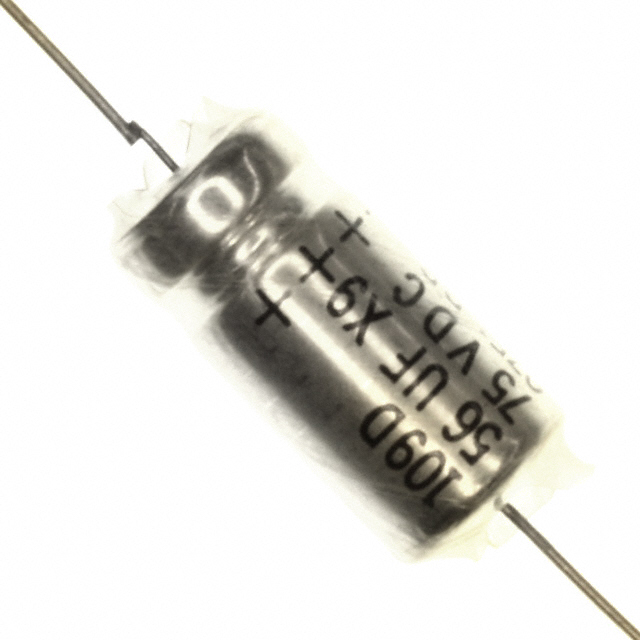

Vishay Dale 109D566X9075T2	Elastomer Sealed Hermetically Sealed	125 °C	-55 °C	Wet Tantalum	75 V	T	Through Hole	6 Ohm	10 %	56 µF	0.921 in	0.406 in	Axial
Vishay Dale 109D567X9010F2	Elastomer Sealed Hermetically Sealed	125 °C	-55 °C	Wet Tantalum	10 V	F	Through Hole	2.5 Ohm	10 %	560 µF	0.796 in	0.312 in	Axial
Vishay Dale 109D136X9075F2	Elastomer Sealed	125 °C	-55 °C	Wet Tantalum	75 V	F	Through Hole	6 Ohm	10 %	13 µF	0.796 in	0.312 in	Axial
Vishay Dale 109D336X0015C2	Elastomer Sealed Hermetically Sealed	125 °C	-55 °C	Wet Tantalum	15 V	C	Through Hole	5 Ohm	20 %	33 µF	0.608 in	0.219 in	Axial	2000 Hrs
