EN3P6F Series

Catalog

CONN CIRCULAR SKT 6 POS SOLDER ST PANEL MOUNT 6 TERMINAL 1 PORT BULK

Part	Contact Material	Applications	Insert Material	Primary Material	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Current Rating (Amps)	Mounting Feature	Number of Positions	Shielding	Connector Type	Orientation	Ingress Protection	Mounting Type	Contact Finish - Mating	Voltage Rating
SWITCHCRAFT/CONXALL EN3P6FPX	Copper Alloy	General Purpose Instrumentation Marine Medical	Elastomer	Plastic	Bayonet Lock	Black	-40 C	65 °C	Solder	UL94 V-0	7.5 A	Bulkhead - Front Side Nut	6	Unshielded	Receptacle Female Sockets	Keyed	IP66 IP68	Panel Mount Through Hole	Gold	250 VAC

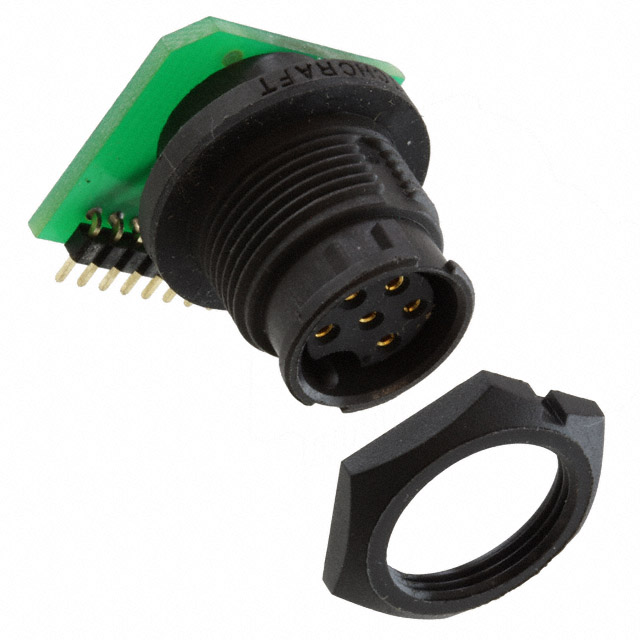

SWITCHCRAFT/CONXALL EN3P6FRAPCBN	Copper Alloy	General Purpose Instrumentation Marine Medical	Elastomer	Plastic	Bayonet Lock	Black	-40 C	65 °C	Circuit Board Solder	UL94 V-0	4 A	Bulkhead - Front Side Nut	6	Unshielded	Receptacle Female Sockets	Keyed	IP66 IP68	Panel Mount Right Angle Through Hole	Gold	250 VAC
SWITCHCRAFT/CONXALL EN3P6FX	Copper Alloy	General Purpose Instrumentation Marine Medical	Elastomer	Plastic	Bayonet Lock	Black	-40 C	65 °C		UL94 V-0	7.5 A	Bulkhead - Front Side Nut	6	Unshielded	Receptacle Female Sockets	Keyed	IP66 IP68	Panel Mount	Gold	250 VAC
SWITCHCRAFT/CONXALL EN3P6FKX	Copper Alloy	General Purpose Instrumentation Marine Medical	Elastomer	Plastic	Bayonet Lock	Black	-40 C	65 °C		UL94 V-0	7.5 A	Bulkhead - Front Side Nut	6	Unshielded	Receptacle Female Sockets	Keyed	IP66 IP68	Panel Mount	Gold	250 VAC
